ZDSPJ1000 drilling rig is a kind of trailer drilling rig, the diesel generator, large displacement piston pump, double-hoist, turntable, drilling tower, auxiliary unloading cylinder and other components are mounted on the chassis. It can be pulled through tractor or truck.

The ZDSPJ rotary drill adopts mud circulation drilling, excelling at large-diameter borehole construction. Drilling mud stabilizes hole walls, cools drill bits and removes rock cuttings efficiently across loose sand, gravel and mixed strata. Its modular design covers working depths from 300m to 2000m for water wells and geothermal holes. Three chassis options are optional: crawler for rough off-road sites, truck chassis for fast highway transit, and trailer mount for low-cost short-distance relocation, satisfying diversified field transport demands.

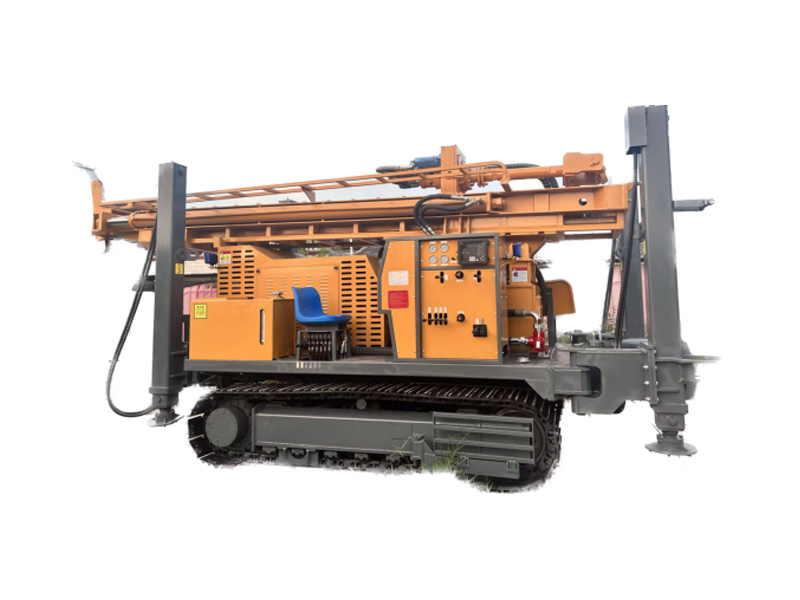

1000S Water Well Drilling Rig is high-power full-hydraulic pneumatic drilling equipment, widely used for medium-deep drinking water wells, geothermal wells and industrial deep well drilling. Equipped with high-pressure DTH drilling technology, it features high rock-breaking efficiency and adapts to complicated rock formations.

ZD Group can customize crawler water well drilling rigs ranging from 200m to 2000m for global deep well construction projects.

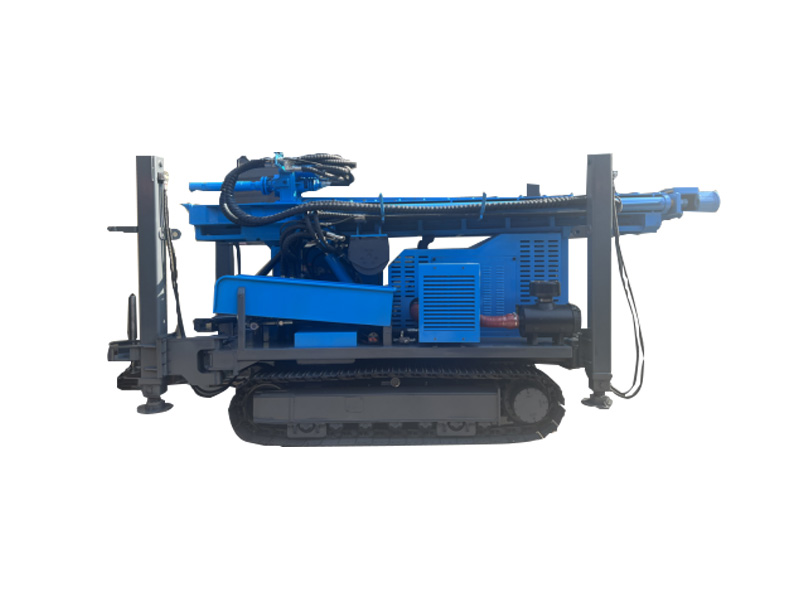

ZD800S Water Well Drilling Rig is full-hydraulic pneumatic drilling equipment, suitable for medium-deep drinking water wells, farm deep wells and geothermal drilling projects. Adopting DTH percussion drilling technology, it delivers outstanding rock-breaking performance for various complex rock formations.

ZD Group can customize crawler water well drilling rigs ranging from 200m to 2000m for global water resource development projects.

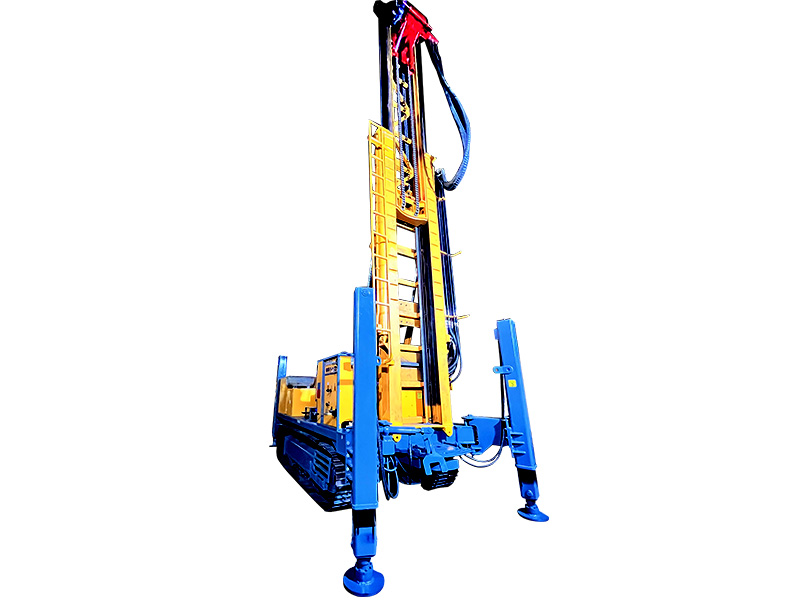

ZD1200 Deep Water Well Drilling Rig is high-power full-hydraulic pneumatic drilling equipment, widely used for deep drinking water wells, geothermal wells and large mine water supply well construction. Equipped with high-pressure pneumatic system and strong load capacity, it runs steadily during deep hard rock drilling.

ZD Group can customize crawler water well drilling rigs ranging from 200m to 2000m for global deep well development projects.

ZD200A hydraulic water well drilling rig supports drilling diameters of 30–150 mm with a maximum drilling depth of 80 m, working air pressure ranging from 1.7–3.0 MPa and air consumption of 17–35 m³/min. It is fitted with an 8-ton lifting force, rotary torque of 2000–3000 N·m and rotary speed at 60–120 rpm, powered by a 35HP diesel engine. Equipped with crawler traveling system and matched mud pump, the rig weighs 1.5 t with travel speed 2.0 km/h and 20° climbing capacity, drill pipe lengths optional at 1.5/2.0 m, overall dimension 2420×1300×1900 mm for domestic well-drilling projects.

Trailer-Mounted Water Well Drilling Rig is an economical and practical drilling system widely used in suburban potable well drilling, farm irrigation well construction and small-scale civil water source projects. The rig is installed on dedicated trailer base with convenient highway haulage; core components adopt special steel material for prominent corrosion resistance, and integrated trailer frame structure brings robust working stability to ensure fast drilling progress and high-quality borehole molding.

We can customize water well drilling rig with drilling depth ranging from 150m to 2000m as per diverse construction needs, and provide complete design and production plan for worldwide water well engineering development.

ZD 200 Water Well Drilling Rig is high-efficiency pneumatic drilling equipment, widely used in farmland water intake, domestic water well and small engineering well construction. Equipped with pneumatic percussion drilling technology, it features fast drilling speed and adapts to various formations including soil and rock.

ZD Group can customize crawler water well drilling rigs ranging from 200m to 2000m for global water well projects.

Core Exploration Rig is an efficient core-drilling machine widely used in solid mineral general survey, engineering geological investigation and inspection drilling for various concrete structures. Adopting rotary coring technology, the rig can collect intact core samples with reliable drilling performance and excellent sample quality.

ZD Group can customize core exploration rigs ranging from 150m to 2000m to serve global geological exploration and infrastructure construction projects.

ZD 220 Water Well Drilling Rig is high-efficiency pneumatic drilling equipment, widely used in farmland water intake, domestic water well and small engineering well construction. Equipped with pneumatic percussion drilling technology, it features fast drilling speed and adapts to various formations including soil and rock.

ZD Group can customize crawler water well drilling rigs ranging from 200m to 2000m for global water well projects.

Agricultural Tractor-Mounted Water Well Drilling Rig is a cost-effective drilling system widely used in rural drinking well construction, farm irrigation well drilling and countryside shallow hydrological prospecting. Mounted on conventional farm tractor, the equipment boasts flexible mobility and convenient field transfer; key parts are made of special steel with superior anti-corrosion performance, and the mature tractor chassis ensures outstanding operation stability to achieve high-efficiency drilling and regular well formation. The standard configuration supports a maximum drilling depth of 200 meters.

We can customize drilling rig with adjustable drilling depth from 150m to 2000 meters based on varied construction demands, and supply full-set design and production solutions for global water well engineering projects.

ZD 260 Water Well Drilling Rig is high-efficiency pneumatic drilling equipment, widely used in farmland water intake, domestic water well and small engineering well construction. Equipped with pneumatic percussion drilling technology, it features fast drilling speed and adapts to various formations including soil and rock.

ZD Group can customize crawler water well drilling rigs ranging from 200m to 2000m for global water well projects.

BW200 horizontal double-cylinder mud pump with two speed shifts, max flow 200L/min. Stable pressure, easy maintenance and universal spare parts. Suitable for geological prospecting, foundation grouting and water conservancy construction, efficiently removing cuttings and stabilizing borehole wall.
