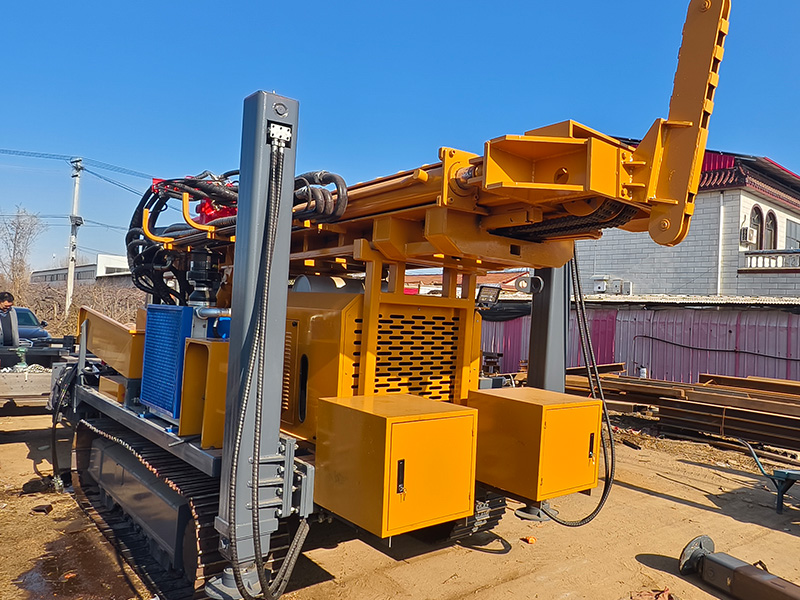

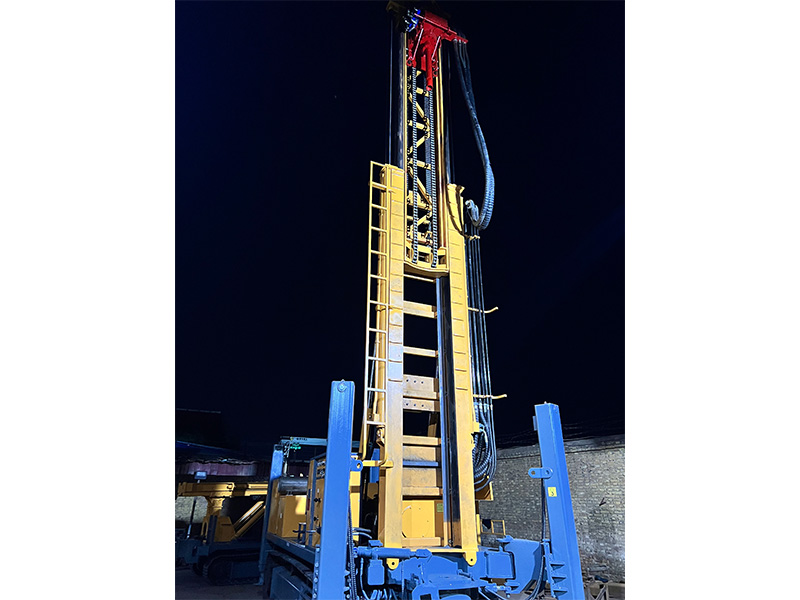

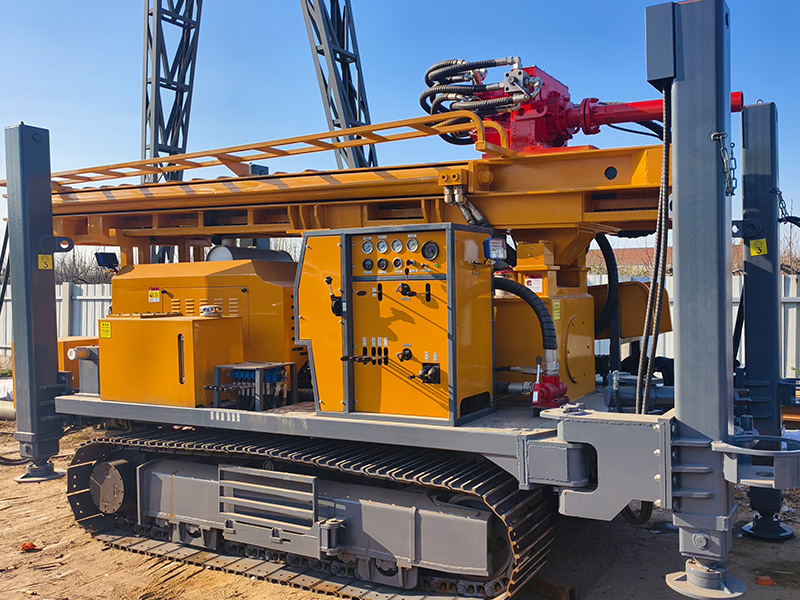

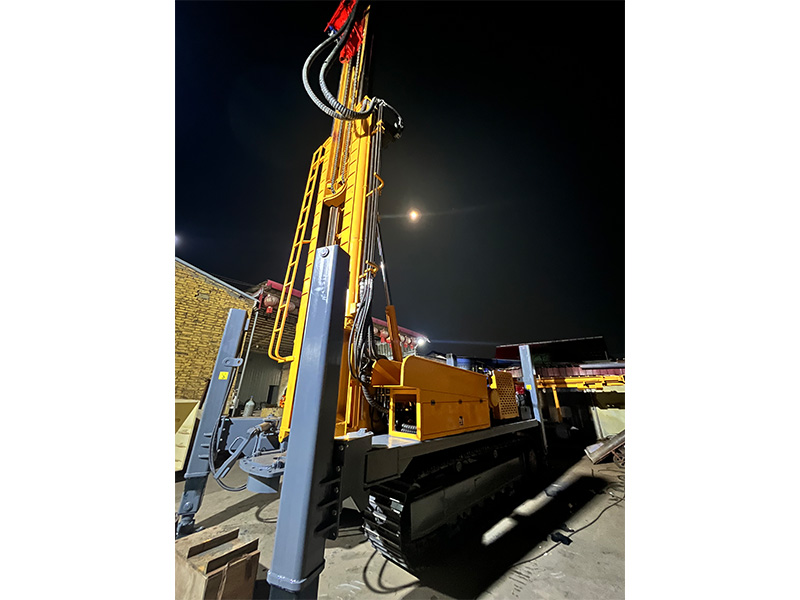

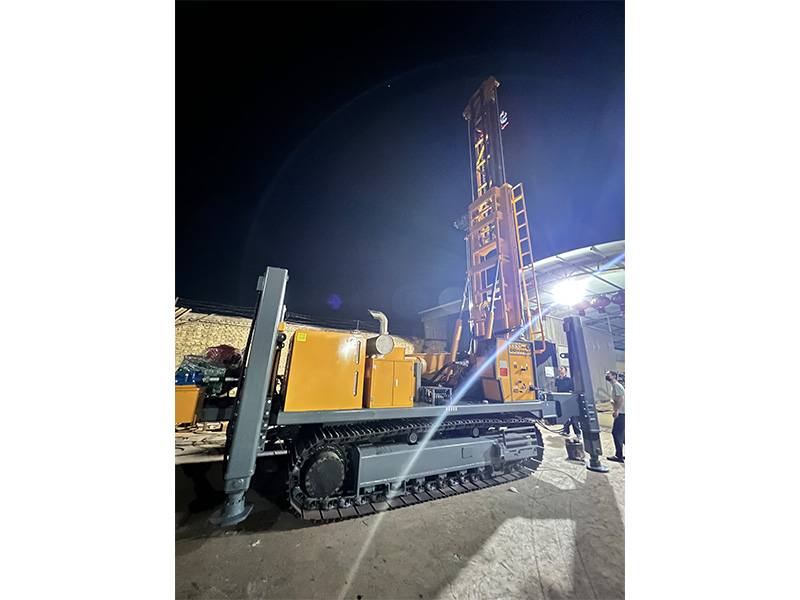

1000S Water Well Drilling Rig

Technical Parameters

Maximum drilling depth: 1000 m

Drilling diameter: 150–600 mm

Working air pressure: 1.05–4.5 MPa

Air consumption: 16–100 m³/min

Drill pipe length: 3 m, 4.5 m, 6 m

Drill pipe diameter: 102 / 114 / 127 mm

Thrust force: 20 T

Lifting force: 48 T

Hoisting speed: 3.0 m/min

Feed speed: 0.5–5 m/min

Fast hoisting speed: 25 m/min

Fast feed speed: 40 m/min

Engine: 245 kW Yuchai 6-cylinder turbocharged diesel engine

Maximum rotary torque: 11000–14800 N·m

Rotary speed: 75–160 r/min

Winch lifting capacity: 1.5 T or 3 T (optional)

Stroke of hydraulic outriggers: 1.65 m

Drilling efficiency: 10–38 m/h

Travel speed: 3.5 km/h

Climbing capacity: 35°

Machine weight: 14 t

Overall dimensions: 5.95 m × 2.25 m × 2.75 m

Optional Equipment: Mud pump, Welding generator, Pipe reamer, Air compressor

Applicable Conditions: Suitable for unconsolidated strata, bedrock and hard rock

Drilling Methods: Top-drive hydraulic rotary drilling & thrusting, DTH hammer drilling, Mud drilling
