For drilling contractors, one water well project is often followed by another. A contractor may need to move equipment from an agricultural irrigation project to a rural water well, then to a geothermal or industrial groundwater project.
In this type of operation, transportation is not simply a logistics issue. It can directly affect how efficiently the drilling equipment is deployed between job sites.

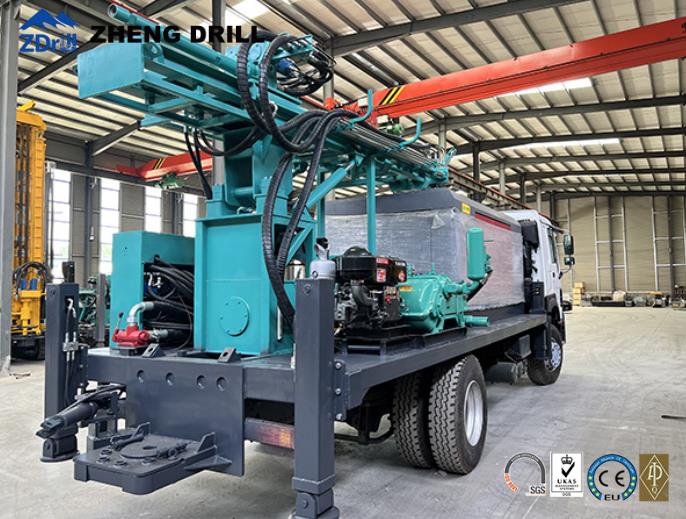

A Truck Mounted Water Well Drilling Rig combines the drilling system with a heavy-duty truck chassis, allowing the complete machine to travel between suitable project locations without requiring a separate transport platform for every relocation.
For contractors handling multiple job sites, this configuration can provide a practical balance between drilling capability and transportation efficiency.
ZDrill Machinery supplies truck-mounted water well drilling rigs using heavy-duty truck chassis and offers configurations for different drilling depths, geological conditions and drilling methods. Its current product range includes truck-mounted equipment for water wells, irrigation, geothermal projects and other groundwater applications.
A drilling rig working at one permanent location has different requirements from equipment operated by a drilling contractor.
A contractor may need to:
Complete a borehole at one site
Travel to another project
Set up the machine again
Drill under different geological conditions
Repeat the process across several locations
When these movements happen frequently, the transportation method becomes an important part of equipment selection.
A truck-mounted drilling rig integrates the drilling assembly and vehicle platform into one machine. When road access is available, the rig can be driven between project locations rather than being loaded onto another vehicle for every move.
This can be particularly useful for contractors whose business model involves serving multiple customers or drilling several wells across a large geographic area.
A truck-mounted water well drilling rig consists of a drilling system installed on a heavy-duty truck chassis.
The truck provides the mobility platform, while the mounted drilling system provides the functions required for borehole construction.
Depending on the model, the complete system may include:
Drilling mast
Rotary drilling system
Hydraulic system
Hoisting mechanism
Drilling tools
Hydraulic outriggers
Mud pump
Air compressor
Control system
The exact configuration depends on the drilling method and project requirements.
For example, ZDrill's truck-mounted water well drilling equipment can be configured for both mud drilling in soil formations and DTH pneumatic drilling in rock formations. The company's listed truck-mounted dual-purpose rigs cover drilling depths from approximately 200 m to 2,000 m depending on configuration.
The biggest difference is the relationship between drilling equipment and transportation.
When roads connect different drilling sites, a truck-mounted rig can travel using its own chassis.
This can be useful for contractors who may need to move equipment:
Between farms
Between rural communities
Between construction sites
Between industrial facilities
Between geothermal drilling locations
Between multiple boreholes within a project region
The equipment does not need to be limited to one drilling location.
With a crawler rig, long-distance transportation may require a trailer or other transport vehicle.
A truck-mounted rig already incorporates a road vehicle into the drilling system.
This does not mean that every truck-mounted rig can travel anywhere. Road conditions, vehicle regulations, machine dimensions, terrain and local transportation requirements still need to be considered.
However, where suitable roads exist, the integrated vehicle platform can simplify relocation between job sites.
A contractor may not know exactly where the next drilling project will be located several months in advance.
Equipment therefore needs to be flexible enough to support different customers and working locations.
A truck-mounted configuration can be practical when the contractor's priority is frequent movement between accessible sites rather than maximum off-road mobility.
Truck-mounted water well drilling equipment can be used across several groundwater development applications.
Large farms and agricultural operations may require wells at different locations.
A contractor can use the same truck-mounted drilling machine to move between projects where road access is available.
The required drilling depth, borehole diameter and drilling method should still be determined according to the groundwater and geological conditions.
Rural water projects may involve drilling several wells in different communities or project areas.
In these applications, transportation between sites can become a significant part of the contractor's workflow.
A truck-mounted system can provide a practical solution when the drilling locations are connected by roads.
Truck-mounted drilling equipment can also be configured for geothermal applications.
The required drilling depth and formation conditions may differ substantially from conventional water wells, so the drilling system should be selected according to the actual project rather than the word "geothermal" alone.
Contractors serving multiple customers may benefit from equipment that can be relocated efficiently.
For these users, the question is often not simply:
"How deep can this rig drill?"
It is also:
"How efficiently can this rig move from one project to the next?"
The drilling system is only one part of a truck-mounted machine.
The truck chassis affects the machine's transportation performance, load capacity and suitability for different road conditions.
ZDrill's product information indicates that truck-mounted water well drilling rigs can use heavy-duty chassis options including Mercedes-Benz, MAN, Scania and Volvo, depending on the equipment configuration.
For international buyers, chassis selection should take into account:
| Factor | Why It Matters |
|---|---|
| Engine power | Supports transportation and drilling system requirements |
| Chassis load capacity | Must support the complete drilling assembly |
| Wheel configuration | Influences road and site mobility |
| Local service network | Important for maintenance and spare parts |
| Vehicle regulations | Must meet destination-country requirements |
| Road conditions | Determines practical transportation capability |
| Overall dimensions | Affects shipping and site access |
The appropriate chassis is therefore not necessarily the same for every country.
A truck-mounted configuration does not determine the drilling method.
The drilling system still needs to be matched to the geological formation.
Mud circulation can be useful when drilling through soil, sand, gravel and other formations where borehole wall stability and cuttings removal are important.
ZDrill's truck-mounted rotary drilling equipment uses mud circulation for water well and related drilling applications. The company also lists BW850-series mud pumps that can be matched with truck-mounted rigs.
Hard rock projects may require a DTH drilling system.
This normally involves matching:
DTH hammer
Drill bit
Air compressor
Drill pipe
Rig feed system
The truck provides the transportation platform, while these components determine the drilling system's suitability for the formation.
Some water well projects pass through different formations during the same borehole.
In such cases, a dual-purpose or combined drilling configuration can provide greater operational flexibility.
ZDrill describes its truck-mounted dual-purpose rigs as capable of switching between mud drilling for soil layers and DTH pneumatic drilling for rock formations.
A useful way to evaluate this equipment is to look at the complete contractor workflow.
Suppose a contractor has six water well projects distributed across an agricultural region.
The workflow may look like:
Job Site 1 → Job Site 2 → Job Site 3 → Job Site 4 → Job Site 5 → Job Site 6
At each location, the contractor needs to:
Transport the rig to the site.
Position and level the machine.
Prepare the drilling system.
Drill the borehole.
Remove or prepare drilling tools.
Move to the next location.
When the sites are connected by suitable roads, a truck-mounted platform can make the movement between locations part of the equipment's normal operating workflow.
This is particularly relevant to contractors rather than users who only need one well drilled at one permanent location.
The correct rig should be selected from the project requirements rather than from truck size alone.
Start with the actual target depth.
Typical requirements may range from shallow domestic wells to several hundred meters or deeper commercial wells.
Do not select equipment only according to its maximum advertised depth. Geological conditions, drilling method, borehole diameter and drill pipe configuration can affect practical drilling performance.
The required hole diameter affects the drilling tools, rotary system and overall machine configuration.
A small domestic water well and a large-diameter irrigation well may require substantially different equipment.
The manufacturer should know whether the drilling area contains:
Clay
Sand
Gravel
Limestone
Weathered rock
Hard rock
Mixed formations
This information helps determine whether rotary, mud, DTH or combined drilling should be considered.
This is particularly important for truck-mounted equipment.
Ask:
Can the truck reach the drilling area?
Are there narrow roads?
Are there bridges with weight restrictions?
Are there steep access roads?
Is the site accessible during the rainy season?
How far apart are the drilling locations?
A truck-mounted rig is most practical when the transportation route matches the capabilities of the vehicle.
One well and twenty wells represent different equipment-use scenarios.
If the contractor expects frequent relocation, transportation efficiency should be included in the equipment evaluation from the beginning.
ZDrill already provides both crawler and truck-mounted water well drilling rigs. The two configurations serve different site-mobility requirements.
A simplified project-oriented comparison is:
| Project condition | Configuration to consider |
|---|---|
| Frequent road travel between sites | Truck-mounted |
| Multiple accessible job sites | Truck-mounted |
| Long-distance relocation | Truck-mounted |
| Uneven off-road drilling area | Crawler |
| Difficult terrain | Crawler |
| Multiple drilling points with good roads | Truck-mounted |
| Remote site with limited road access | Crawler |
| Contractor serving road-accessible projects | Truck-mounted |
This does not mean one configuration is universally suitable. The actual choice depends on the combination of transportation, terrain, drilling depth and geological conditions.
Consider a contractor operating across several agricultural areas.
The contractor's requirements are:
Multiple drilling projects
300–800 m target depth
Soil and rock formations
Regular movement between customers
Road access to most project locations
DTH capability for harder formations
Mud drilling capability for softer formations
In this situation, the contractor should not evaluate the drilling rig and transportation vehicle separately.
A suitable equipment package could include:
Truck chassis + drilling system + hydraulic system + mud pump + air compressor + DTH tools + drill pipes
The final configuration should be determined according to the actual depth, borehole diameter, formation and transportation conditions.
This type of project-based configuration is also the approach ZDrill describes when recommending drilling equipment according to application, drilling environment, transportation requirements and operating conditions.
Before requesting a quotation, prepare the following information:
| Project information | Example |
|---|---|
| Application | Irrigation / rural water / contractor drilling |
| Number of job sites | 5–20 locations |
| Target depth | 300 m / 500 m / 1,000 m |
| Borehole diameter | 200–300 mm |
| Formation | Soil / sand / gravel / hard rock |
| Drilling method | Mud / DTH / combined |
| Road conditions | Paved / gravel / rural road |
| Truck preference | Available local chassis or manufacturer-supplied chassis |
| Supporting equipment | Air compressor / mud pump / drill tools |
| Destination | Country and port |
Providing this information allows the Truck Mounted Water Well Drilling Rig Manufacturer to recommend a configuration based on the complete project instead of simply quoting a standard machine.
ZDrill Machinery, operated by Shijiazhuang Zhengdrilling Machinery Equipment Co., Ltd., manufactures water well drilling equipment in Shijiazhuang, Hebei, China.
The company's product portfolio includes truck-mounted, crawler-mounted, trailer-mounted and other water well drilling configurations, together with air compressors, mud pumps and drilling tools. ZDrill states that it has provided drilling equipment for international markets including Central Asia, the Middle East, South America, North America, Africa and Southeast Asia.
Its truck-mounted product range includes models such as the ZDSPJ800, which uses a SHACMAN 6×4 special drilling-rig chassis and is designed for direct rotary drilling.
For international contractors, the manufacturer can evaluate the drilling depth, formation, drilling method, chassis requirements and supporting equipment together when preparing an equipment configuration.
For a drilling contractor, equipment utilization extends beyond the drilling process itself.
The rig must be able to move between projects, arrive at the next site, prepare for drilling and then repeat the process.
A truck-mounted platform can be particularly practical when:
Job sites are distributed across a large region
Roads connect the drilling locations
The contractor handles multiple customers
The machine must relocate frequently
Both transportation and drilling capability are required from one platform
The value therefore lies in the complete workflow rather than one individual specification.
A truck-mounted water well drilling rig combines a water well drilling system with a heavy-duty truck chassis. The truck serves as the transportation platform while the mounted equipment performs the drilling operation.
The integrated truck platform allows the drilling machine to travel between suitable project locations without requiring a separate transport vehicle for every relocation.
Yes. Depending on the configuration, a truck-mounted water well drilling rig can be equipped with a DTH hammer, drill bit and air compressor for hard-rock drilling.
The drilling depth depends on the model and configuration. ZDrill currently lists truck-mounted water well drilling equipment covering approximately 200–2,000 m depending on the selected configuration.
It can be suitable for agricultural irrigation projects, particularly when the drilling locations have reasonable road access and the contractor needs to move between multiple sites.
The decision should be based on the working pattern. Truck-mounted equipment can be considered when road transportation and frequent movement between accessible sites are important, while crawler equipment may be more appropriate when off-road mobility and difficult terrain are major requirements.
A Truck Mounted Water Well Drilling Rig is designed around two requirements: drilling and transportation.
For contractors working across multiple job sites, the integrated truck platform can make it easier to relocate the drilling equipment between accessible project locations. This can be particularly relevant to agricultural irrigation, rural water supply, geothermal projects and commercial drilling services.
However, transportation capability should not be considered separately from drilling performance.
The final equipment configuration should match the drilling depth, borehole diameter, geological formation, drilling method, road conditions, number of job sites and supporting equipment.
For international buyers, providing these project details to a Truck Mounted Water Well Drilling Rig Manufacturer is a practical starting point for selecting the appropriate drilling system.
