When a water well drilling project is located far from paved roads, cities, or established infrastructure, the drilling rig must do more than reach the required depth. It also needs to reach the drilling point, move safely across the site, and remain stable during operation.

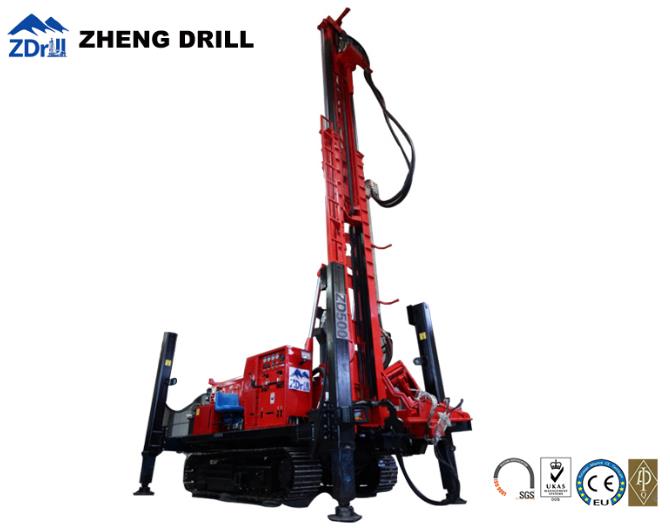

A Crawler Water Well Drilling Rig uses a tracked chassis instead of a conventional road-vehicle platform. This configuration is particularly relevant to contractors working on farms, rural water projects, remote groundwater development sites, and other locations where ground access can be more difficult.
For international buyers, selecting a crawler rig should therefore involve more than looking at maximum drilling depth. Site mobility, ground conditions, drilling method, borehole requirements, and supporting equipment all need to be considered together.
ZDrill Machinery manufactures crawler-type water well drilling rigs and provides configurations for different drilling depths, geological conditions, and project applications. Its crawler range includes compact equipment for shallower wells as well as larger machines such as the ZD-2000 and ZD1600 for deeper drilling projects.
A drilling rig can have sufficient drilling capacity on paper but still be unsuitable for a particular project if it cannot efficiently reach the working location.
Remote drilling sites may involve:
Unpaved access roads
Uneven ground
Agricultural fields
Gravel surfaces
Slopes and changing elevations
Limited site infrastructure
Multiple drilling points within one project area
In these conditions, the machine's site mobility becomes part of the overall drilling solution.
A crawler undercarriage distributes the machine's weight across a larger contact area than conventional wheels. This helps the rig travel across many uneven working surfaces and makes it easier to position the equipment directly at the drilling location.
For contractors moving between several boreholes within the same work area, this can reduce the need for additional site transportation equipment.
The main value of a crawler configuration is not simply that the rig can move. It is that the machine is designed to combine drilling equipment and off-road mobility in one platform.
The crawler chassis allows the rig to travel across working areas that may not be convenient for ordinary road vehicles.
For example, an agricultural irrigation project may require drilling in several areas of a farm rather than at a single prepared construction site. A crawler rig can move between these points without requiring a separate vehicle platform for every short relocation.
The same principle applies to rural groundwater projects where drilling points may be separated by rough or undeveloped terrain.
Mobility is only one part of the requirement. Once the rig reaches the drilling point, it must establish a stable working position.
This is especially important when the drilling process involves significant rotary torque, feeding force, lifting force, or pneumatic impact.
Crawler-type equipment can therefore be useful when a project requires both movement and drilling stability rather than road transportation alone.
Remote projects may not have the same infrastructure as urban construction sites.
Instead of designing the entire project around road accessibility, buyers can select equipment according to the actual terrain around the drilling location.
This is one reason crawler water well drilling rigs are commonly considered for rural and remote groundwater projects.
Crawler-mounted equipment can support several types of water well projects.
Agricultural projects may have drilling locations distributed across farmland. The equipment may need to move over soil, gravel, or uneven field conditions.
Crawler rigs can be configured for different drilling depths and methods depending on the local formation and irrigation requirements.
Village and community water projects may be located away from major transportation infrastructure.
In these situations, the drilling equipment needs to reach the site before any borehole construction can begin. A tracked platform can provide useful mobility during site access and positioning.
Smaller crawler drilling rigs can be suitable for relatively shallow domestic and small engineering wells.
For example, the ZD200A crawler hydraulic water well drilling rig has a maximum drilling depth of 80 m, a drilling diameter range of 30–150 mm, and a travel speed of 2.0 km/h. Its compact configuration is intended for smaller water well drilling applications.
Crawler water well drilling equipment can also be configured for geothermal shallow wells and other groundwater-related projects.
The required machine should be selected according to depth, hole diameter, formation, drilling method, and supporting equipment rather than application name alone.
A crawler chassis does not determine whether a drilling rig is suitable for a project by itself.
International buyers should evaluate the complete drilling system.
| Project factor | What the buyer should determine |
|---|---|
| Ground conditions | Soil, gravel, clay, weathered rock or hard rock |
| Drilling depth | Target borehole depth |
| Hole diameter | Required finished and drilling diameter |
| Drilling method | DTH, rotary, reverse circulation or other method |
| Site access | Roads, slopes, fields and remote locations |
| Relocation frequency | Number of drilling points |
| Supporting equipment | Air compressor, mud pump, drill pipes and tools |
| Transport method | How the rig reaches the project area |
This approach prevents buyers from selecting a crawler rig simply because the machine looks suitable for rough terrain.
Mobility and geology need to be considered together.
Rotary or mud-based drilling methods may be suitable for certain loose formations.
In these applications, the buyer should pay attention to mud circulation, pump capacity, drill pipe configuration, and borehole stability.
Hard rock drilling may require a DTH drilling system, including a suitable DTH hammer, drill bit, and air compressor.
The crawler platform provides mobility and positioning, while the drilling system determines how the machine interacts with the formation.
This distinction is important because changing from one geological environment to another may require more than changing the drill bit.
Many real projects do not consist of a single uniform formation.
A borehole may pass through soil, gravel, weathered rock, and harder formations at different depths. Equipment selection should therefore consider the expected geological profile rather than only the first few meters of drilling.
Crawler rigs are available in different sizes and drilling capacities.
A small rig may be more appropriate when the project requires:
Shallow drilling
Smaller boreholes
Easy transportation
Frequent movement
Limited working space
A larger crawler rig may be required when the project involves:
Deep water wells
Larger borehole diameters
Greater lifting requirements
Higher rotary torque
More demanding drilling formations
For example, the ZD-2000 is specified with a maximum drilling depth of 2,000 m, maximum drilling diameter of 500 mm, maximum lifting force of 100 tonnes, and maximum rotary torque of 38,000 Nm. The machine is also configured with a crawler chassis and can be customized for different drilling requirements.
For deep projects, ZD1600 is another crawler-based option, with a listed maximum drilling depth of 1,600 m and drilling diameter range of 127–700 mm.
These specifications illustrate why buyers should compare complete machine parameters rather than selecting equipment based only on the crawler structure.
One important application for crawler equipment is projects involving multiple boreholes.
Consider an agricultural groundwater development project where several wells must be drilled across a large property.
The equipment may need to:
Reach the first drilling location.
Establish a stable working position.
Complete the borehole.
Move to the next drilling point.
Repeat the drilling process.
In this type of project, relocation efficiency can have a direct effect on overall project organization.
The crawler chassis is therefore not simply a transportation component. It becomes part of the contractor's workflow.
This is particularly relevant when drilling points are located away from established roads or when the machine needs to move repeatedly within the working area.
The crawler rig should be evaluated as part of a complete drilling system.
Depending on the drilling method and formation, supporting equipment may include:
Air Compressor
DTH Hammer
DTH Drill Bit
Mud Pump
Drill Pipes
Drill pipe accessories
Water circulation equipment
Borehole tools
For DTH applications, the compressor must be compatible with the hammer and drilling requirements. For mud drilling, the mud pump and circulation system become more important.
This is why an experienced Crawler Water Well Drilling Rig Manufacturer should ask for project information before recommending a machine configuration.
Imagine a contractor needs to develop groundwater in a rural agricultural area.
The drilling points are located away from paved roads, the terrain is uneven, and several wells are planned across the project area.
Instead of focusing only on maximum drilling depth, the contractor should provide the manufacturer with:
Expected drilling depth
Required borehole diameter
Geological information
Number of wells
Distance between drilling points
Ground and terrain conditions
Available transportation
Preferred drilling method
The manufacturer can then evaluate the crawler platform, drilling system, power requirements, drill pipe configuration, and supporting equipment as one package.
This project-based approach is more useful than selecting a machine solely from a product catalog.
Before placing an order, buyers should request detailed information in several areas.
Confirm:
Maximum drilling depth
Recommended working depth
Drilling diameter
Rotary torque
Lifting force
Feed or mast stroke
Do not evaluate a machine using maximum depth alone. The actual drilling capability depends on formation, drilling method, tools, and operating conditions.
Ask about:
Travel speed
Climbing capability
Overall dimensions
Machine weight
Ground clearance
Transport requirements
These specifications are particularly important when the equipment will operate in remote areas.
Confirm whether the machine is designed for:
DTH drilling
Rotary drilling
Mud drilling
Reverse circulation
A combination of drilling methods
The appropriate method depends on the geological conditions and project requirements.
Ask whether the manufacturer can supply compatible:
Air compressors
Mud pumps
DTH hammers
Drill bits
Drill pipes
Other drilling tools
A complete equipment package can simplify procurement and compatibility management.
ZDrill Machinery manufactures water well drilling equipment in China and offers crawler, truck-mounted, trailer-mounted and other drilling rig configurations. Its crawler product range covers different project scales, from compact water well equipment to larger deep drilling machines.
The company's crawler equipment includes models such as the ZD260, ZD200A, ZD-2000 and ZD1600, covering different combinations of drilling depth, hole diameter, power, mobility and drilling method.
For international projects, the machine should be configured according to the actual application rather than using one standard specification for every location.
To receive a more suitable equipment recommendation, buyers can provide:
| Information | Example |
|---|---|
| Application | Irrigation / rural water supply / domestic well |
| Drilling depth | 300 m / 800 m / 1,500 m |
| Borehole diameter | Required hole size |
| Formation | Soil / sand / gravel / hard rock |
| Drilling locations | One site / multiple sites |
| Terrain | Flat / uneven / mountainous |
| Drilling method | DTH / rotary / mud |
| Power preference | Diesel / other requirements |
| Supporting equipment | Compressor / mud pump / drill tools |
With this information, a Crawler Water Well Drilling Rig Manufacturer can evaluate the required machine size and configuration more accurately.
A crawler water well drilling rig is a drilling machine installed on a tracked chassis. It combines drilling equipment with a crawler travel system for movement around working sites.
Crawler rigs can be useful when drilling locations have uneven terrain, limited road access, or multiple working points within a remote area.
Yes. Suitable crawler rigs can be configured for hard rock applications using an appropriate drilling method, such as DTH drilling, together with compatible hammers, bits and air compressors.
Depth depends on the model and configuration. ZDrill's crawler range includes equipment from smaller shallow-water-well rigs to models listed for depths of 1,600 m and 2,000 m.
Start with the drilling depth, borehole diameter, geological conditions and drilling method. Then evaluate crawler mobility, machine dimensions, power, supporting equipment and transportation requirements.
A Crawler Water Well Drilling Rig is particularly relevant when groundwater projects require the drilling equipment to operate beyond conventional road infrastructure.
Its tracked platform can provide useful mobility and positioning capability for agricultural fields, rural water projects, uneven terrain and other remote drilling environments. However, crawler mobility should not be considered separately from drilling performance.
The right equipment depends on the combination of terrain, drilling depth, borehole diameter, geological conditions, drilling method and supporting equipment.
For international buyers, working with a manufacturer that can configure the crawler platform and drilling system around the actual project requirements can make equipment selection more practical.
