A 500m Water Well Drilling Rig is designed for projects where a shallow drilling machine is not sufficient, but an ultra-deep drilling system would add unnecessary equipment capacity.
A 500-meter drilling requirement can occur in agricultural irrigation, rural water supply, industrial groundwater development, geothermal projects and other applications. However, the number "500 m" alone does not describe the complete drilling requirement.
For equipment buyers, the more useful question is:
What type of project is a 500m drilling rig expected to handle, and what equipment configuration is appropriate for that project?
This makes a 500m rig a useful category to evaluate from a project perspective rather than simply as a maximum-depth specification.
ZDrill Machinery currently offers the ZD500 Water Well Drilling Rig, a crawler-mounted full-hydraulic drilling unit with a standard maximum drilling depth of 500 meters. The manufacturer also states that its drilling rigs can be customized for different depth requirements.
A 500-meter well sits within a range that can serve many medium-to-deep groundwater projects.
It can be relevant when the required aquifer is below the depth normally reached by smaller water well drilling equipment, or when the project requires a deeper borehole because of local geological conditions.
Typical project scenarios may include:
Agricultural irrigation wells
Rural and community water supply
Industrial water wells
Shallow geothermal projects
Municipal groundwater exploration
Contractor-operated water well projects
The actual requirement should still come from groundwater investigation and geological information.
A project requiring 500 meters of drilling does not necessarily mean the same rig configuration will work everywhere. The formation, hole diameter, drilling method and required tooling can change the equipment package.
Maximum drilling depth is often one of the first specifications buyers compare.
However, choosing a machine with substantially more capacity than the project requires can affect:
Machine size
Transportation
Initial equipment cost
Auxiliary equipment
Site preparation
Operating requirements
For a contractor whose normal projects are around several hundred meters, a machine configured around the actual working range may provide a more practical equipment package.
The objective is not to find the rig with the largest number on the specification sheet.
It is to match the equipment to the expected drilling workload.
Agricultural projects can require deeper groundwater wells when suitable water resources are not available near the surface.
A 500m-class drilling rig can be considered for irrigation projects where geological and groundwater information indicates that deeper drilling is necessary.
The crawler configuration of the ZD500 is designed for movement and positioning at drilling sites, making it relevant to agricultural and rural applications.
Some rural water projects require wells deeper than conventional domestic drilling equipment can efficiently handle.
A 500-meter drilling capacity provides additional depth range for groundwater development while remaining below the capacity of many ultra-deep drilling systems.
Industrial facilities may require a reliable groundwater source for production or utility purposes.
These projects often involve more detailed requirements for borehole diameter, well construction and water yield. The drilling rig should therefore be selected as part of the complete well construction plan.
The ZD500 is also listed for shallow geothermal applications.
In geothermal projects, the drilling requirement can differ from a conventional water well because temperature, formation characteristics and well design may affect the drilling program.
The 500-meter depth category can therefore cover certain geothermal projects without assuming that every geothermal well requires the same equipment.

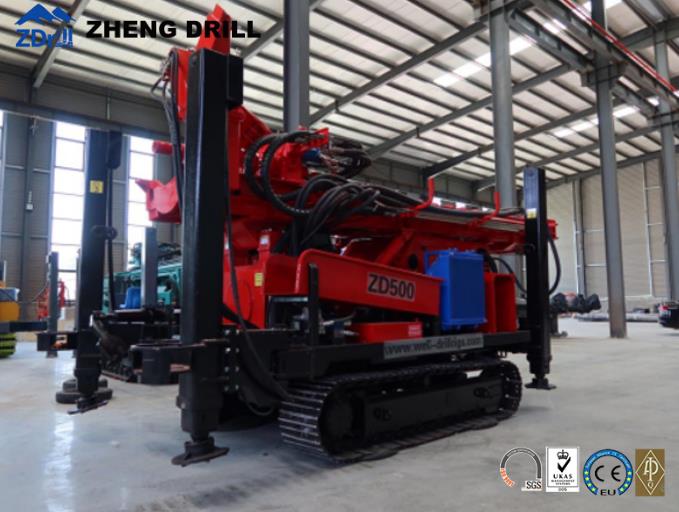

ZDrill's ZD500 is a crawler-mounted full-hydraulic water well drilling rig.
According to the manufacturer's product information, the machine:
Has a standard maximum drilling depth of 500 m
Uses a full-hydraulic driving structure
Uses a crawler chassis
Is intended for rural domestic water wells
Can be used for agricultural irrigation wells
Can be used for shallow geothermal projects
Can be used for municipal foundation water exploration
ZDrill also states that its drilling rigs can be customized with adjustable drilling depths from 150 m to 2,000 m depending on construction requirements.
This makes the ZD500 useful not only as a fixed 500-meter product specification but also as part of a broader drilling equipment range.
For a medium-depth water well, the drilling system needs coordinated control of several operations.
A full-hydraulic configuration can control functions such as:
Rotary movement
Drilling feed
Lifting
Mast-related operations
Machine movement
Other hydraulic functions
The purpose is not simply to increase the number of hydraulic components.
The advantage is that drilling movements can be integrated into one operating system, allowing the operator to control the main drilling functions from the machine.
For contractors, this becomes particularly relevant when the rig is used repeatedly across different projects.
The depth specification and chassis configuration solve different problems.
500 m describes the drilling capacity.
The crawler chassis relates to how the machine moves and positions itself at the worksite.
For agricultural, rural or undeveloped drilling locations, the rig may need to move from the access point to the actual borehole location and then reposition between drilling sites.
The ZD500 uses a crawler platform designed to provide stability during operation and mobility around the drilling area.
This makes the machine configuration relevant to projects where both drilling depth and site access need to be considered.
One of the most important distinctions for buyers is that 500 m is a depth requirement, not a drilling method.
Different geological formations may require different approaches.
Mud drilling can be considered when the formation and borehole conditions require drilling-fluid circulation.
The mud system can help transport cuttings and support borehole stability in suitable formations.
Where hard rock is encountered, a DTH system may be considered.
This can involve:
Rig + DTH Hammer + Drill Bit + Air Compressor + Drill Pipes
The appropriate combination depends on the formation and required borehole dimensions.
Some boreholes pass through different formations.
A project may begin in soil or loose formations and later encounter rock.
In such cases, the drilling equipment may need to accommodate more than one drilling approach.
ZDrill's project inquiry system specifically asks buyers to identify soil or rock formations and whether mud pump, air compressor or combined drilling processes are required.
The final borehole design is determined by the well construction plan, not simply by the maximum depth of the rig.
Important project information can include:
| Project requirement | Why it matters |
|---|---|
| Target depth | Defines the required drilling range |
| Borehole diameter | Influences tools and drilling load |
| Geological layers | Determines drilling approach |
| Casing requirements | Affects borehole construction |
| Water yield target | Helps determine well design |
| Drilling method | Determines supporting equipment |
| Site conditions | Influences rig configuration |
For example, two customers may both request a 500m water well but require different machines because one project involves predominantly soil while another passes through extensive hard rock.
A 500m-class rig can also be useful for drilling contractors whose projects fall within a relatively consistent depth range.
Instead of purchasing one extremely large machine for every possible project, a contractor may build its equipment fleet around common project depths.
For example:
200–300m projects → smaller drilling equipment
Around 500m projects → 500m-class drilling rig
800–1,200m projects → deeper drilling equipment
This type of equipment planning can help contractors match their machinery to the work they actually receive.
ZDrill's product range includes multiple depth classes, including ZD300, ZD350, ZD400, ZD500 and ZD600, while the company's broader range extends to significantly deeper equipment.
Instead of contacting a manufacturer with only:
"I need a 500m water well drilling rig."
it is more useful to provide the following information.
For example:
Agricultural irrigation
Rural water supply
Industrial water
Geothermal
Municipal project
Indicate whether the site mainly contains:
Soil
Sand
Gravel
Rock
Hard rock
Mixed formations
Provide the planned borehole diameter and any available well design information.
If already known, specify whether the project will use:
Mud drilling
DTH drilling
Rotary drilling
Combined drilling
Describe:
Flat or uneven terrain
Available access roads
Working area
Distance between drilling locations
Power or fuel availability
These details allow the manufacturer to determine whether a standard 500m Water Well Drilling Rig is appropriate or whether a different configuration would be more suitable.
A buyer may also compare the ZD500 with a 600m-class machine.
The difference is not simply:
500 m vs 600 m
The real question is whether the additional depth range corresponds to an actual project requirement.
For projects consistently requiring approximately 450–500 meters, a 500m-class machine may be a logical starting point.
If geological information suggests that the planned wells may exceed 500 meters, or the contractor regularly receives projects around 600 meters, a higher-capacity configuration may deserve consideration.
ZDrill currently lists the ZD600 with a standard maximum drilling depth of 600 meters, alongside the ZD500.
This gives buyers a practical way to compare equipment according to their expected project range rather than comparing machines solely by brand or appearance.
A professional 500m Water Well Drilling Rig Manufacturer should not treat 500 m as the only input.
A more useful configuration process is:
Project application → formation → hole diameter → drilling method → rig configuration → supporting equipment
For example:
Agricultural well + mixed formation + 200–300 mm borehole + DTH/combined drilling
will require a different equipment package from:
Rural water well + predominantly loose formation + larger borehole + mud circulation
Even though both projects have the same 500-meter target depth.
This project-based approach helps avoid purchasing equipment that technically reaches 500 m but is poorly matched to the actual drilling conditions.
Depending on the drilling method, a complete 500m drilling system may include:
Drill pipes
DTH hammer
DTH drill bits
Air compressor
Mud pump
High-pressure air or mud pipes
Reamers
Other drilling accessories
ZDrill's product range includes air compressors, mud pumps, drill pipes and drilling tools alongside its water well drilling rigs.
This can allow buyers to evaluate the drilling machine and supporting equipment as a complete package rather than sourcing every component independently.
For a 500-meter project, the machine itself is only part of the purchase decision.
An experienced manufacturer can help buyers evaluate:
Drilling depth
Formation
Drilling method
Chassis configuration
Hydraulic system
Supporting equipment
Drill tools
Spare parts
Transportation requirements
This is particularly useful for overseas buyers who may not have enough local experience with the specific geological conditions.
ZDrill Machinery, operated by Shijiazhuang Zhengdrilling Machinery Equipment Co., Ltd., was established in 1997 and manufactures water well drilling rigs and supporting drilling equipment in Shijiazhuang, Hebei, China. Its portfolio covers crawler, truck-mounted and trailer-mounted configurations as well as DTH equipment, air compressors, mud pumps and drilling tools.
A 500m water well drilling rig is equipment designed with a maximum drilling depth around 500 meters under its specified configuration. It can be used for applications such as agricultural irrigation, rural water supply and selected geothermal projects.
A 500m borehole is deeper than many shallow water wells, but it is not an ultra-deep drilling requirement. The practical classification depends on local geology and project conditions.
The ZD500 is listed for rural domestic water wells, agricultural irrigation wells, shallow geothermal projects and municipal foundation water exploration.
It depends on the machine configuration and drilling method. For hard-rock formations, a suitable DTH system and compatible air compressor, hammer and drill bit may be required.
No. Maximum rated depth should not be interpreted as a guaranteed depth for every geological condition. Actual drilling performance depends on the formation, borehole diameter, drilling method, tooling and complete machine configuration.
ZDrill states that its water well drilling rigs can be customized for different drilling depths and construction requirements. The company currently describes its customizable range as extending from 150 m to 2,000 m.
A 500m Water Well Drilling Rig occupies a useful position for projects that require substantially more than shallow-well equipment but do not necessarily need an ultra-deep drilling system.
The important point for buyers is that 500 meters should be treated as a project depth requirement, not as the only equipment specification.
Application, geological formation, borehole diameter, drilling method, site conditions and supporting equipment all influence the final configuration.
For customers looking specifically for a 500m Water Well Drilling Rig Manufacturer, the ZD500 provides a concrete 500-meter crawler-based equipment option, while ZDrill can also configure drilling equipment for different depth and application requirements.
