Choosing a water well drilling rig requires more than looking at the maximum drilling depth. Contractors must also consider borehole diameter, geological conditions, air supply, equipment mobility, and the accessories needed to complete a drilling project.
For contractors working on shallow groundwater wells, small engineering projects, or domestic water supply projects, a compact drilling machine may be worth evaluating when its technical capacity matches the job requirements.

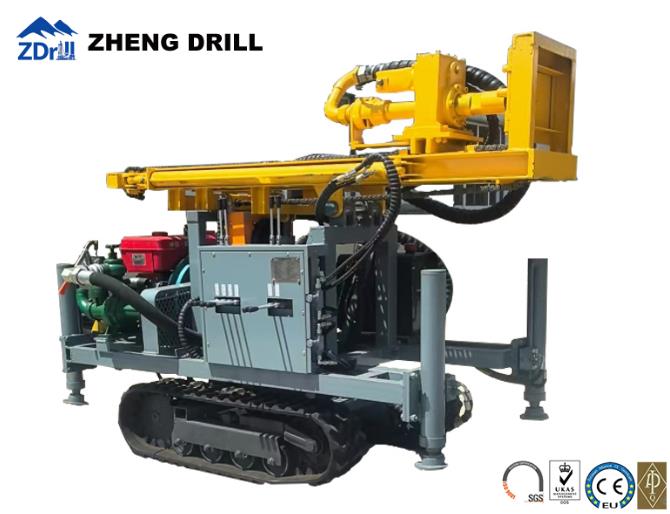

The ZD200A water well drilling rig from ZDrill Machinery is listed with a maximum drilling depth of 80 meters and a drilling diameter range of 30–150 mm. Its published specifications also include working air pressure of 1.7–3.0 MPa and air consumption of 17–35 m³/min.
This guide explains the ZD200A specifications, the supporting equipment buyers should check, and the information to prepare before requesting a quotation.
The following table summarizes the specifications published on the official ZDrill product page.
| Parameter | Published Specification |
|---|---|
| Model | ZD200A |
| Maximum drilling depth | 80 m |
| Drilling diameter | 30–150 mm |
| Working air pressure | 1.7–3.0 MPa |
| Air consumption | 17–35 m³/min |
| Lifting force | 8 tons |
| Rotary torque | 2,000–3,000 N·m |
| Rotary speed | 60–120 rpm |
| Engine power | 35 HP diesel engine |
| Travel system | Crawler |
| Travel speed | 2.0 km/h |
| Climbing capacity | 20° |
| Machine weight | 1.5 tons |
| Overall dimensions | 2,420 × 1,300 × 1,900 mm |
| Drill pipe length options | 1.5 m / 2.0 m |
| Supporting equipment | Matched mud pump, as specified by the manufacturer |
Source: Official ZD200A Water Well Drilling Rig.
These are published product specifications, not a guarantee of drilling performance under every site condition. Actual results depend on geological formation, borehole design, drilling tools, operating procedures, and the complete equipment configuration.
An 80m water well drilling rig may be considered for projects where the planned depth falls within the machine's rated capacity and the required borehole diameter is compatible with its specifications.
Potential applications include:
Shallow groundwater exploration
Domestic water well construction
Small-scale water supply projects
Selected agricultural water projects
Engineering drilling where the required depth and hole diameter are suitable
The final equipment choice should be based on the actual drilling plan rather than the application name alone.
For example, two wells with the same target depth may require different equipment if one passes through soft soil and the other encounters hard rock. Buyers should provide available geological information and confirm the drilling method before selecting a machine.
Before choosing a shallow water well drilling machine, establish three basic requirements:
Target depth: Identify the planned depth and whether the project may require deeper drilling later.
Borehole diameter: Confirm the required hole diameter throughout the planned drilling interval.
Ground conditions: Provide available information about soil, gravel, weathered rock, and hard-rock sections.
If the project regularly requires depths beyond 80 meters, compare a higher-capacity drilling rig rather than assuming the ZD200A will meet the requirement.
ZDrill offers other models for different depth ranges. Buyers can review the water well drilling rig product range when comparing available configurations.
Air supply is an important consideration when evaluating a pneumatic drilling system. A compressor that cannot provide the required airflow at the necessary working pressure may affect drilling performance.
The ZD200A product page lists working air pressure of 1.7–3.0 MPa and air consumption of 17–35 m³/min. Buyers should use these figures as a starting point for technical discussions with the equipment supplier.
Do not select a compressor based only on its advertised maximum pressure or nominal airflow.
Ask the supplier to confirm the required air delivery at the relevant working pressure and under the expected operating conditions. The compressor's rated performance should be checked against the requirements of the complete drilling system.
The appropriate air supply also depends on the drilling method, drill bit, hammer configuration where applicable, borehole diameter, and formation characteristics.
Before purchasing a compressor separately, confirm which drilling tools and supporting equipment are included in the quotation and which must be sourced independently.
Temperature, altitude, dust, maintenance arrangements, and transportation can affect compressor selection and operation.
For remote projects, buyers should also consider access to filters, service parts, and routine maintenance support.
For a compatible equipment proposal, provide the supplier with the target depth, hole diameter, geological information, and preferred drilling method.
The ZD200A is listed with a crawler traveling system. Crawler mobility may be useful on sites where the machine needs to move around a working area without relying on a conventional road vehicle for every short relocation.
However, mobility depends on actual site conditions and machine limitations.
Before ordering, evaluate the available access route, working platform, slope, ground bearing conditions, and space required to set up the equipment.
The product page lists a climbing capacity of 20°. This figure should not be interpreted as permission to travel safely on every slope of that angle. Actual operating limits depend on ground conditions, machine configuration, and the manufacturer's operating instructions.
The published ZD200A dimensions are 2,420 × 1,300 × 1,900 mm, with a listed machine weight of 1.5 tons.
These details can help buyers begin planning transport and site access. Before shipment, confirm the final dimensions and weight of the supplied configuration, including any separately packed accessories.
For contractors operating across multiple locations, the availability of routine service parts and technical support can affect equipment uptime.
Ask which filters, hydraulic components, drilling tools, and other service items are recommended for the selected configuration. Confirm the maintenance schedule and the availability of replacement parts before finalizing the order.
Equipment specifications are useful, but overseas project experience can also help buyers understand how drilling equipment is selected and supplied.
ZDrill has published a Peru water well drilling project case. According to the company's published case information, the project was related to agricultural water well drilling and groundwater development.
| Project Item | Published Information |
|---|---|
| Country | Peru |
| Project year | 2025 |
| Application | Agricultural water wells and groundwater development |
| Equipment quantity | 2 units |
| Equipment types described | Crawler and trailer-mounted drilling rigs |
| Supplier | ZDrill Machinery |
The case does not identify the supplied equipment as the ZD200A model, so it should be treated as an international project reference rather than a direct performance test of the ZD200A.
The Peru case highlights several considerations that are also relevant to other water well drilling projects.
Equipment mobility: The appropriate chassis depends on how the machine will be transported between working locations and the terrain it must cross.
Project-specific configuration: Drilling depth, formation, working environment, and supporting equipment should be evaluated together.
Preparation before shipment: Buyers should confirm the agreed configuration, factory inspection arrangements, accessories, and transportation details before dispatch.
Technical communication: Clear discussions about the intended drilling conditions help the supplier propose a more appropriate equipment package.
For contractors planning a similar project, the practical next step is to provide the target depth, borehole diameter, geological information, and site access requirements before requesting a final equipment recommendation.
The most appropriate drilling machine is not necessarily the one with the greatest rated depth. It is the one that matches the planned work while leaving an appropriate allowance for project requirements.
| Selection Factor | ZD200A | Higher-Capacity Rig |
|---|---|---|
| Maximum depth | 80 m, as published | Depends on the selected model |
| Borehole diameter | 30–150 mm, as published | Depends on the selected model |
| Project type | Shallow drilling within rated capacity | Projects requiring greater depth or different hole sizes |
| Equipment planning | Confirm compressor, tools, and accessories | Confirm complete system configuration and support equipment |
| Main decision | Suitability for a specific shallow well | Suitability for deeper or more demanding drilling |
For deeper projects, buyers can review the ZD 260 Water Well Drilling Rig or discuss other available models with ZDrill.
The ZD 260 product page lists a maximum drilling depth of 260 meters. The correct choice between these models depends on the planned depth, required borehole diameter, formation, drilling method, and supporting equipment.
To receive a useful quotation for a ZD200A water well drilling rig, prepare as much of the following information as possible:
Project country: Where the equipment will be used.
Target drilling depth: Planned depth and any potential future depth requirements.
Borehole diameter: Required diameter or diameter range.
Geological conditions: Available information about soil, gravel, and rock.
Drilling method: The preferred method, if already determined.
Air supply: Whether a suitable compressor is already available.
Supporting equipment: Requirements for drill pipes, bits, pumps, and other accessories.
Site conditions: Access limitations, terrain, and transportation requirements.
Order quantity: Number of rigs and any spare parts required.
Delivery destination: Country or port for shipping arrangements.
If some technical details are not yet available, provide the information you have and ask the supplier what else is needed for equipment selection.
ZDrill Machinery supplies water well drilling rigs and related drilling equipment for international projects. Its published product range includes crawler-mounted, truck-mounted, and trailer-mounted rigs, as well as mud pumps, air compressors, drill pipes, and drilling tools.
For buyers evaluating the ZD200A, the official product page provides a starting point for comparing drilling depth, borehole diameter, air requirements, mobility, and machine dimensions.
Before placing an order, request confirmation of the final configuration, the included accessories, the recommended supporting equipment, and the applicable warranty and technical support arrangements.
Visit the official ZDrill website to review the product range or contact the team to discuss your drilling project.
The official product page lists a maximum drilling depth of 80 meters. Actual suitability depends on the formation, borehole diameter, drilling tools, and operating conditions.
The published drilling diameter range is 30–150 mm. Confirm that this range matches the required borehole design before purchasing.
The published working air pressure is 1.7–3.0 MPa, with air consumption listed at 17–35 m³/min. Buyers should confirm the required compressor performance with the supplier for the intended configuration.
Suitability depends on the rock formation, drilling method, tooling, and complete system configuration. Provide geological information and ask the manufacturer to confirm whether the ZD200A is appropriate for the project.
It may be considered for agricultural water well projects where the required depth, diameter, geology, and drilling method fall within the machine's capabilities. The final choice should be based on project-specific technical requirements.
Confirm the required depth and borehole diameter, geological conditions, drilling method, air or fluid supply, mobility, dimensions, accessories, spare parts, and destination-market requirements.
The ZD200A is a compact crawler-mounted drilling rig with a published maximum drilling depth of 80 meters and a drilling diameter range of 30–150 mm. Its working air pressure, air consumption, and supporting equipment requirements should be evaluated alongside the planned drilling conditions.
For contractors planning shallow water wells, the most useful first step is to define the project requirements and confirm that the complete drilling system is suitable before ordering.
Contact ZDrill Machinery with your target depth, borehole diameter, geological information, and project location to discuss the appropriate water well drilling equipment.
