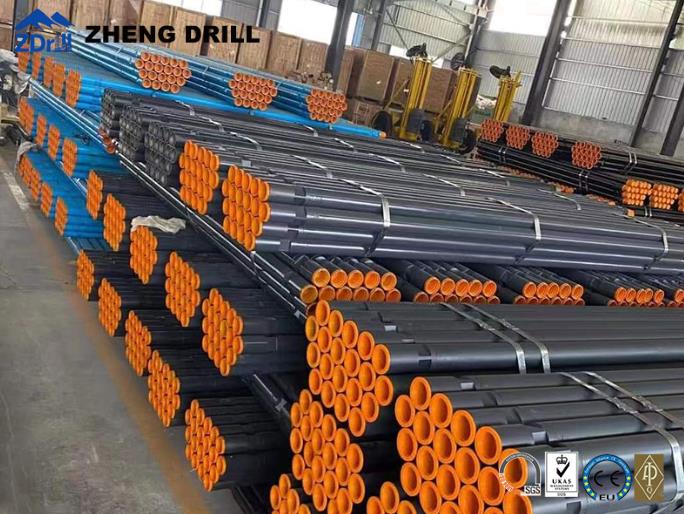

A water well drilling rig drill pipe is an essential part of the drilling system. It connects the surface drilling equipment with the bottom-hole tools and transmits rotation, thrust or pulling force according to the drilling method. In pneumatic drilling systems, the drill string also provides a passage for compressed air.
For drilling contractors, equipment distributors and borehole construction companies, choosing the correct drill pipe is important for equipment compatibility, reliable operation and efficient project planning.
However, drill pipe selection involves more than choosing a diameter. The pipe length, connection type, drilling method, required depth and compatibility with the drilling rig must also be considered.
When sourcing water well drilling drill pipe from a manufacturer or supplier, buyers should confirm the complete specification before placing an order.
Drill pipe forms the connection between the drilling rig and the downhole drilling tools. Its exact function depends on the drilling method and equipment configuration.
Common functions include:
Transmitting rotation: Transferring rotational movement from the rig to the drilling tools.
Connecting drilling tools: Providing a drill string between the rig and the bottom-hole assembly.
Supporting drilling operations: Working with the rig's feed and lifting systems during drilling and pipe handling.
Providing an air or fluid passage: In systems designed for pneumatic or fluid-circulation drilling, the pipe allows the required medium to travel through the drill string.
A suitable drill pipe needs to withstand the loads and operating conditions associated with the intended application.
For this reason, buyers should select pipe specifications according to the complete drilling system rather than relying on a general description such as heavy-duty drill pipe.
There is no single drill pipe specification suitable for every water well drilling project. Different drilling rigs use different pipe diameters, lengths and connection systems.
The required diameter depends on the drilling rig, drilling method, hole size and bottom-hole tools.
For example, ZDrill's published product information lists drill pipe diameters of 76 mm and 89 mm for the ZD 260 model, while the ZD 300 listing includes 89 mm and 102 mm options.
These examples demonstrate why buyers should check the specifications of the exact rig model before ordering replacement pipes.
A larger diameter is not automatically better. The pipe must match the rig's handling capacity, connection design and intended drilling configuration.
Drill pipe is available in different lengths depending on the equipment design and project requirements.
Common considerations include:
Available space for adding and removing pipes
Rig mast or feed beam configuration
Pipe handling and lifting arrangements
Transportation and storage requirements
Required drilling depth
Longer pipes may reduce the number of connections required during drilling, but they also affect handling, transportation and equipment requirements.
Always confirm the pipe length specified for the rig instead of assuming that pipes of different lengths are interchangeable.
The connection is another important specification when purchasing water well drilling rig drill pipe.
A pipe may have a suitable outside diameter but still be incompatible with the rig or drilling tools because its connection does not match.
Before ordering, confirm:
Connection type and dimensions
Thread specification, where applicable
Compatibility with existing drill pipes
Compatibility with the rig and bottom-hole assembly
Any special requirements for the intended drilling method
If replacement pipes will be used with existing equipment, providing the original pipe specifications or clear photographs of the connections can help the supplier assess compatibility.
The right drill pipe depends on the drilling method and working conditions.
Rotary drilling systems use rotational force to advance the drilling tools. The drill pipe must be compatible with the rig's rotary drive, connection system and intended operating loads.
For these applications, buyers should confirm pipe diameter, length, connection dimensions and the drilling rig's technical requirements.
Where drilling fluid is circulated through the drill string, the pipe specification must also be suitable for the system's fluid circulation requirements.
A DTH water well drilling rig uses a down-the-hole hammer to break rock near the bottom of the borehole. Compressed air is supplied to the hammer through the drilling system.
For this type of application, the drill pipe needs to match the rig, hammer, connection arrangement and required air passage.
Important considerations include:
Drill pipe diameter and length
Connection compatibility with the hammer and rig
Required air pressure and airflow
Borehole diameter and drilling depth
Operating conditions and pipe handling requirements
The drill pipe should be selected as part of the complete DTH system rather than independently of the hammer and air compressor.
Explore ZDrill's DTH drilling equipment to review the relevant equipment category.
Deep borehole projects require particular attention to the complete drill string.
As the drilling depth increases, the total pipe length and suspended weight increase. The drilling rig must have suitable lifting capacity and a configuration designed for the intended drilling conditions.
For deep well projects, buyers should evaluate:
Maximum planned drilling depth
Drill pipe diameter and length
Total drill string weight
Rig lifting capacity
Connection strength and compatibility
Drilling method and geological conditions
For example, ZDrill's ZD1600 Deep Water Well Drilling Rig lists drill pipe diameters of 114 mm and 127 mm, with pipe lengths ranging from 3 to 6 meters.
These specifications apply to that listed model and should not be treated as universal requirements for other drilling rigs.
When buying drill pipe for an existing water well drilling rig, compatibility is often more important than comparing prices alone.
Use the following checklist before requesting a quotation.
| Item | Information to Confirm |
|---|---|
| Drilling rig | Manufacturer and exact model |
| Pipe diameter | Required outside diameter and relevant dimensions |
| Pipe length | Required length per section |
| Connection | Thread type, dimensions and connection design |
| Drilling method | Rotary, DTH or another compatible method |
| Working depth | Planned borehole depth |
| Drilling tools | Compatibility with the existing bottom-hole assembly |
| Operating conditions | Expected loads and drilling environment |
| Quantity | Number of pipes required |
| Replacement purpose | New rig configuration or replacement of existing pipes |
Providing these details helps a water well drill pipe supplier evaluate the request more accurately.
If the technical information is incomplete, ask the supplier which additional measurements or equipment details are needed before confirming the order.
For international buyers, selecting a supplier involves more than checking whether the requested diameter is available.
A supplier serving different drilling applications should be able to discuss the relevant pipe specifications and their compatibility with the intended equipment.
Ask whether the supplier can support the required diameter, length and connection configuration.
Before placing an order, request written confirmation of the key specifications. This is particularly important for replacement pipes that need to work with an existing rig.
Do not assume that two pipes are interchangeable simply because they have the same nominal diameter.
Ask what material information, dimensional checks and inspection documents are available for the proposed product.
The inspection requirements should reflect the intended application and the buyer's technical specifications.
For contractors operating multiple rigs, consistent replacement-part supply can simplify maintenance planning.
Confirm the production lead time, packaging method, shipping arrangements and availability of repeat orders.
If you are purchasing a new drilling rig, ask the manufacturer to confirm the drill pipe configuration alongside the rig and supporting tools.
ZDrill's product catalog covers water well drilling rigs, DTH equipment, air compressors, mud pumps and drilling tools. Buyers can use the catalog as a starting point when discussing a compatible equipment package.
Agricultural water supply projects illustrate why drilling equipment must be selected according to the project requirements rather than by one specification alone.
ZDrill has published a Chile water well drilling project reference that can be reviewed by buyers researching agricultural water well applications.
When planning a similar project, contractors should confirm the target depth, geological conditions, required borehole diameter and drilling method before finalizing the drill pipe specification.
Important: The published project reference does not establish the exact drill pipe dimensions used in that project. Those specifications should not be assumed to apply to another site.
For a new agricultural borehole project, sharing the actual operating conditions with the equipment manufacturer is a more reliable way to determine the required pipe configuration.
Avoiding specification errors can reduce purchasing delays and compatibility problems.
Two pipes with the same diameter may have different lengths, connections or other specifications. Confirm the complete configuration before ordering.
A replacement pipe should match the equipment it will be used with. Always provide the rig model and relevant technical information.
Rotary drilling and DTH drilling can involve different system requirements. Select the pipe according to the actual drilling configuration.
Longer or heavier drill strings can increase the load handled by the rig. For deeper projects, confirm the complete system's lifting and handling capabilities.
A request that only states “water well drill pipe” may not provide enough detail for accurate product selection. Include the diameter, length, connection requirements, intended rig and quantity whenever possible.
Drill pipe sizes vary by rig model and drilling method. Buyers should confirm the required diameter and length from the rig's technical specifications. ZDrill's published product information includes different pipe diameters for different models.
Not necessarily. Compatibility depends on dimensions, connection design, drilling method, equipment handling requirements and other technical factors. Confirm compatibility with the manufacturer before using a pipe on another rig.
Check the rig and hammer specifications, pipe diameter, length, connection arrangement, drilling depth and compressed-air requirements. The selected pipe should form part of a compatible DTH drilling system.
Provide the drilling rig model, required diameter and length, connection specifications, drilling method, intended depth and order quantity. Photographs or drawings of the existing pipe can also help clarify the requirements.
Ask the manufacturer whether the required drill pipes and supporting tools can be supplied with the rig. Purchasing a compatible equipment package can simplify specification confirmation and procurement.
Selecting the correct water well drilling rig drill pipe requires a clear understanding of the drilling rig, drilling method, connection system and project requirements.
ZDrill Machinery supplies water well drilling rigs and related drilling equipment for different applications. If you are sourcing drill pipe or planning a complete drilling equipment purchase, provide your technical requirements so the appropriate configuration can be reviewed.
Visit the ZDrill product catalog to explore available equipment and contact the company for product information.
