Mineral exploration projects require drilling equipment that can recover reliable geological samples from different depths and formations. Depending on the exploration program, drilling contractors may choose between different core drilling rig types, drilling systems, core sizes, and rig configurations.
A suitable core drilling rig should match the required drilling depth, core diameter, geological formation, terrain, mobility requirements, and sampling objectives. For shallow exploration, a compact surface rig may be sufficient, while deeper mineral exploration can require a hydraulic wireline core drilling system with specialized drill rods and tooling.

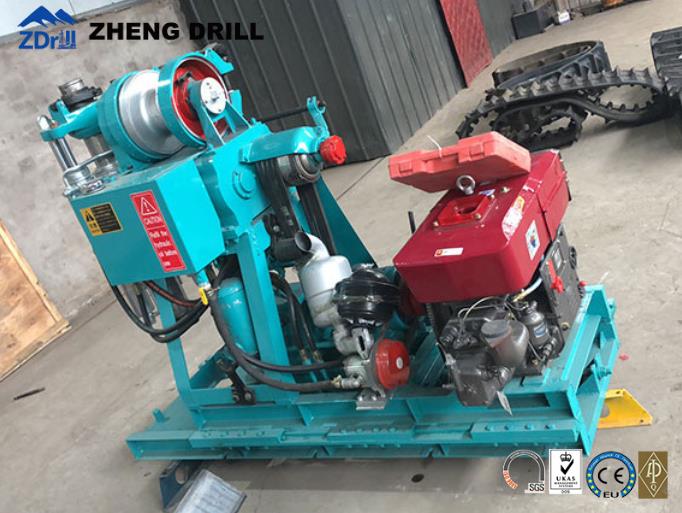

This guide presents the top 10 core drilling rig types and configurations used for mineral exploration, with a focus on drilling depth, core size, mobility, and application. It also explains how to select the right equipment from a core drilling rig manufacturer for a specific exploration project.
A core drilling rig is designed to drill into rock formations and recover relatively continuous cylindrical samples known as core samples.
During drilling, a core bit cuts around a cylindrical section of rock. The core enters the core barrel and is subsequently recovered for geological logging, testing, and analysis.
Core samples can provide information about:
Rock type
Geological structure
Mineralization
Ore zones
Rock quality
Fractures
Alteration
Subsurface conditions
Because the objective is to obtain geological information rather than simply create a borehole, mineral exploration core drilling rigs are designed around controlled drilling and core recovery.
The appropriate rig depends on the exploration depth, core size, formation, drilling environment, and project objectives.
There is no single classification system used by every drilling equipment manufacturer. In practice, core drilling rigs can be categorized according to their drilling depth, mounting method, coring system, hydraulic configuration, and intended application.
The following ten types and configurations represent important options for mineral exploration projects.
Deep-hole hydraulic core drilling rigs are designed for exploration projects where drilling must reach significant underground depths.
A hydraulic system provides controlled rotary drilling, feed movement, and hoisting operations. The rig can be configured with wireline core drilling equipment and appropriate drill rods for deeper exploration.
Typical characteristics include:
Full hydraulic drive
High drilling capacity
Controlled rotary speed and torque
Hydraulic feed system
Wireline core drilling compatibility
Modular drilling tools
Applications:
Deep mineral exploration
Metal ore exploration
Geological investigation
Mining exploration programs
Deep-hole rigs are generally selected when exploration targets are located significantly below the surface.
A wireline core drilling rig is designed around a wireline core recovery system.
Instead of removing the complete drill string every time the core barrel needs to be recovered, the inner tube can be retrieved through the drill string using a wireline system.
This configuration can be particularly useful for deeper drilling programs because it can reduce the amount of drill rod handling required during core recovery.
Common wireline core sizes include:
BQ
NQ
HQ
PQ
The appropriate size depends on the exploration program, required sample diameter, formation, and drilling depth.
Typical applications:
Mineral exploration
Diamond exploration
Copper exploration
Gold exploration
Geological investigation
For deep exploration, wireline compatibility is an important consideration when comparing core drilling rig suppliers.
A full hydraulic core drilling rig uses hydraulic power for major drilling operations.
Compared with mechanically driven systems, hydraulic configurations allow drilling parameters such as rotary speed, feed, and hoisting to be controlled through the hydraulic system.
Typical components include:
Hydraulic motor
Hydraulic pump
Rotary head
Feed cylinder
Hydraulic control system
Hoisting system
Drill mast
Full hydraulic rigs are commonly considered for professional mineral exploration where controlled drilling performance and flexible equipment configuration are important.
ZDrill Machinery provides full hydraulic core drilling equipment and develops configurations according to drilling depth, geological conditions, and project requirements.
A crawler-mounted core drilling rig integrates the drilling system with a tracked chassis.
This configuration can be useful when exploration teams need to move the drilling machine between drilling locations over uneven or undeveloped terrain.
Potential advantages include:
Improved site mobility
Easier movement between drilling points
Suitable for uneven terrain
Integrated machine structure
Reduced need for separate transport equipment between nearby drilling positions
Crawler-mounted core drilling rigs may be considered for:
Mountain exploration
Mining areas
Remote exploration sites
Geological survey projects
Uneven ground conditions
However, crawler mobility does not eliminate the need to evaluate access roads, slopes, ground conditions, transportation restrictions, and working space.
A surface core drilling rig is designed to perform core drilling from the ground surface.
Surface core drilling is one of the most common approaches for mineral exploration because it allows geological teams to investigate underground formations without underground mining access.
The rig configuration can vary according to:
Drilling depth
Core size
Rock formation
Terrain
Required mobility
Drilling angle
Surface core drilling can support exploration programs for various mineral resources, including metallic and non-metallic deposits.
For many exploration contractors, the key decision is not simply whether to use surface core drilling, but which rig capacity and core size best match the geological target.
A diamond core drilling rig uses a diamond-impregnated or surface-set diamond core bit to cut rock and recover core samples.
Diamond drilling is widely associated with mineral exploration because diamond tooling can be used to cut hard geological formations while producing relatively continuous core.
A diamond core drilling system normally includes:
Diamond core bit
Core barrel
Drill rods
Rotary drilling system
Circulation system
Hydraulic feed system
The choice of diamond bit depends on the rock formation, abrasiveness, hardness, drilling conditions, and selected core size.
For hard-rock mineral exploration, the combination of a suitable hydraulic rig and properly selected diamond tooling can be an important part of the overall drilling system.
Compact core drilling rigs are designed where equipment size, transportation, and access are major considerations.
Exploration drilling is not always performed on large open mining sites. Some targets may be located in:
Narrow access areas
Mountainous regions
Forested terrain
Remote locations
Restricted working areas
A compact drilling rig can make transportation and site positioning easier when the project does not require the capacity of a large deep-drilling machine.
The appropriate compact rig should still be selected according to the required drilling depth and core size rather than machine dimensions alone.
Portable core drilling rigs emphasize transportation and deployment.
Depending on the design, a portable system may be transported to remote exploration areas where conventional heavy equipment is difficult to move.
Important considerations include:
Overall machine weight
Component dimensions
Disassembly requirements
Transport method
Power source
Drilling depth
Terrain
Portable equipment can be useful for early-stage exploration or projects where multiple drilling locations have limited vehicle access.
However, portability usually needs to be balanced against drilling capacity. A lighter machine is not automatically the better choice for deep or difficult formations.
Underground core drilling rigs are designed for drilling from underground mining environments.
Unlike surface exploration rigs, underground drilling equipment must operate within the physical limitations of tunnels, galleries, and underground working areas.
Important considerations include:
Machine height
Machine width
Turning radius
Drilling angle
Hydraulic configuration
Underground transportation
Ventilation conditions
Working space
Underground core drilling can support exploration and geological investigation where drilling from existing mine workings provides better access to the target zone.
Some exploration projects cannot be served efficiently by a standard configuration.
A custom core drilling rig can be developed around project-specific requirements such as:
Drilling depth
Core diameter
Drilling angle
Formation
Rig dimensions
Mobility
Power system
Hydraulic configuration
Drill rod type
Wireline system
Auxiliary equipment
Customized equipment can be particularly useful for mining contractors working in unusual terrain or projects requiring a specific combination of drilling capacity and mobility.
When discussing customization with a core drilling rig manufacturer, buyers should provide detailed project information rather than requesting a machine based only on a target depth.
Drilling depth is one of the most important factors when selecting exploration equipment.
| Rig Type | Typical Project Focus | Depth Consideration |
|---|---|---|
| Compact Core Rig | Shallow exploration | Generally suited to shallower programs |
| Portable Core Rig | Remote exploration | Depends on configuration |
| Surface Core Rig | General exploration | Wide range of configurations |
| Crawler Core Rig | Uneven terrain | Depends on rig capacity |
| Diamond Core Rig | Hard-rock exploration | Depends on tooling and rig |
| Wireline Core Rig | Mineral exploration | Particularly useful for deeper drilling |
| Full Hydraulic Core Rig | Professional exploration | Medium to deep applications |
| Deep-Hole Core Rig | Deep mineral exploration | Designed for deeper targets |
| Underground Core Rig | Underground mining | Depends on equipment configuration |
| Customized Core Rig | Specialized projects | Designed according to requirements |
There is no universal depth limit for each category. Actual drilling capability depends on the rig, drill rods, core size, formation, drilling angle, tooling, and operating conditions.
Core size is another major consideration in mineral exploration.
BQ is one of the smaller wireline core sizes and may be selected where a smaller core diameter is acceptable.
NQ is widely used in mineral exploration and provides a balance between sample diameter, drilling efficiency, and equipment requirements.
HQ provides a larger core diameter than NQ and can be useful where a larger geological sample is required or where ground conditions make a larger diameter desirable.
PQ provides a larger core diameter and can be considered when the exploration program requires a larger sample.
The final selection should be determined by the geological program and drilling conditions rather than simply choosing the largest available core size.
Core size affects several aspects of the drilling system.
A larger core generally requires:
Larger drill rods
Larger core barrels
Larger boreholes
Greater equipment capacity
Appropriate drilling fluid circulation
Compatible diamond tooling
Smaller core sizes can reduce some equipment and drilling requirements, but they may provide less material for certain geological analyses.
Therefore, core size selection should be based on the information required from the exploration program.
Different exploration projects may require different equipment configurations.
Gold exploration programs may use diamond core drilling to investigate mineralized zones and geological structures.
The rig should be selected according to:
Target depth
Rock formation
Core size
Required sample quality
Terrain
Copper exploration can involve deep drilling through hard-rock formations.
A hydraulic wireline core drilling configuration may be considered when the program requires deeper continuous core recovery.
Iron ore exploration requirements can vary significantly depending on deposit characteristics and geological conditions.
Core size and drilling depth should be selected according to the exploration program.
Core drilling technology can also support selected geological investigation projects where obtaining rock samples is important for understanding subsurface formations.
Mineral exploration companies often compare core drilling and reverse circulation drilling.
The two methods have different sampling objectives.
| Feature | Core Drilling | Reverse Circulation |
|---|---|---|
| Sample | Rock core | Rock cuttings |
| Sample structure | Relatively continuous | Fragmented |
| Main equipment | Core barrel and diamond bit | Dual-wall pipe and RC hammer |
| Common use | Detailed geological investigation | Rapid exploration sampling |
| Typical tooling | Diamond bit | DTH/RC hammer and bit |
| Sample logging | Core logging | Cuttings logging |
Core drilling is often preferred when detailed geological information and relatively continuous samples are required.
RC drilling can be attractive when rapid drilling and cuttings sampling are the primary objectives.
The best method depends on the exploration strategy.
When comparing core drilling rig manufacturers, buyers should review the complete technical specification rather than focusing on one number.
The maximum drilling depth should be considered together with the selected core diameter and formation.
Different geological formations and drill bit sizes require different rotary conditions.
Adequate torque is important for maintaining drilling performance under different formation conditions.
Feed force affects how effectively the bit can penetrate the formation.
The hoisting system needs sufficient capacity for the drill string, core barrel, and other equipment.
The rig should be compatible with the required rod type and core drilling system.
The core barrel should match the selected core size and wireline system.
Hydraulic components should be appropriately matched to the drilling system and intended working conditions.
Choosing the right core drilling rig manufacturer is as important as selecting the machine itself.
Before placing an order, buyers should evaluate:
Check the company's history in drilling equipment manufacturing and whether it has actual engineering and production capabilities.
A supplier offering multiple drilling systems may be able to recommend a more suitable solution when the project requirements change.
Check whether the manufacturer can modify the machine according to depth, core size, terrain, power requirements, and other project conditions.
Ask about factory assembly, machine testing, hydraulic system inspection, and pre-shipment checks.
For overseas projects, evaluate technical communication, spare parts, installation guidance, and after-sales support.
A complete supplier may also provide drill rods, core barrels, diamond bits, mud pumps, air compressors, and other drilling equipment.
ZDrill Machinery, operated by Shijiazhuang Zhengdrilling Machinery Equipment Co., Ltd., is a drilling equipment manufacturer based in Shijiazhuang, Hebei, China.
The company was established in 1997 and focuses on drilling equipment research and development, manufacturing, international supply, and technical services.
Its drilling equipment portfolio includes:
Core drilling rigs
Mineral exploration drilling rigs
Reverse circulation drilling rigs
Water well drilling rigs
DTH drilling equipment
Air compressors
Mud pumps
Drill pipes
Drilling tools
ZDrill states that its core drilling solutions can be developed for approximately 300–2000 m drilling applications, with the final equipment configuration depending on drilling requirements and site conditions.
For international exploration contractors, the company can evaluate drilling depth, formation, core size, mobility, and other requirements when developing an equipment solution.
When selecting a China core drilling rig manufacturer, project experience can provide useful information about how the supplier communicates with overseas customers and handles equipment delivery.
ZDrill has published international drilling equipment project cases, including a Chile water well drilling project. The case involved a drilling contractor working on agricultural irrigation and rural water supply projects.
According to the published case, ZDrill evaluated the customer's drilling depth, geological conditions, working environment, and accessory requirements before developing the equipment configuration. The machine then went through factory assembly, hydraulic system installation, testing, inspection, and shipment preparation before being delivered to Chile.
Although this particular published case is a water well drilling project rather than a mineral exploration core drilling project, it demonstrates ZDrill's experience in international drilling equipment manufacturing, project-based configuration, factory testing, and overseas delivery.
For mineral exploration projects, the final core drilling rig configuration should still be determined according to the specific exploration program.
Before requesting a quotation, prepare as much project information as possible.
A useful inquiry can include:
Application: Mineral exploration
Target mineral: Gold / copper / iron ore / other
Maximum depth: 1,000 m
Core size: NQ / HQ / PQ
Formation: Hard rock
Terrain: Mountainous
Rig type: Crawler-mounted
Drilling angle: Vertical / inclined
Quantity: 1–5 sets
Destination: Country and port
The more complete the information, the easier it is for a manufacturer to recommend an appropriate drilling configuration.
There is no single best rig for every exploration project. The appropriate machine depends on drilling depth, core size, geological formation, terrain, mobility, and sampling requirements.
NQ is commonly used in mineral exploration, while BQ, HQ, and PQ may be selected according to the project's sampling requirements and geological conditions.
A wireline core drilling rig uses a wireline system to retrieve the inner core barrel through the drill string, reducing the need to remove the entire drill string during routine core recovery.
Diamond drilling is designed to recover relatively continuous rock core using a diamond core bit and core barrel. RC drilling normally returns fragmented rock cuttings through the inner tube of dual-wall drill pipe.
Full hydraulic rigs can be configured for medium- and deep-drilling applications. Actual drilling depth depends on the specific machine, core size, drill rods, formation, and drilling conditions.
Yes. A manufacturer can potentially customize the drilling system according to depth, core size, mobility, power, geological conditions, and other project requirements.
ZDrill states that its core drilling solutions can be configured for approximately 300–2000 m drilling applications. The actual achievable depth depends on the selected machine configuration, drilling method, core size, geological formation, and operating conditions.
The most important information includes drilling depth, core size, geological formation, drilling angle, terrain, mobility requirements, project location, and required quantity.
For core drilling rig specifications, equipment configuration, customization, and quotation requests, contact ZDrill Machinery at:
Service Email: bruce@well-drillrigs.com
Core Drilling Rig Types, Core Drilling Rig Manufacturer, Core Drilling Rig Supplier, Core Drilling Rig Manufacturer China, Mineral Exploration Drilling Rig, Core Exploration Drilling Rig, Diamond Core Drilling Rig, Hydraulic Core Drilling Rig, Wireline Core Drilling Rig, Crawler Core Drilling Rig, Deep Hole Core Drilling Rig, China Core Drilling Rig Factory
Processing Demand Survey
x
