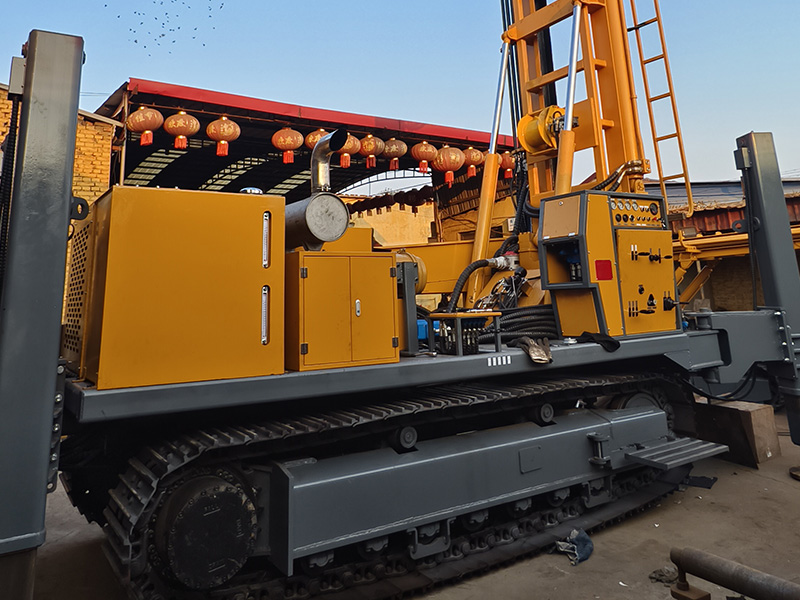

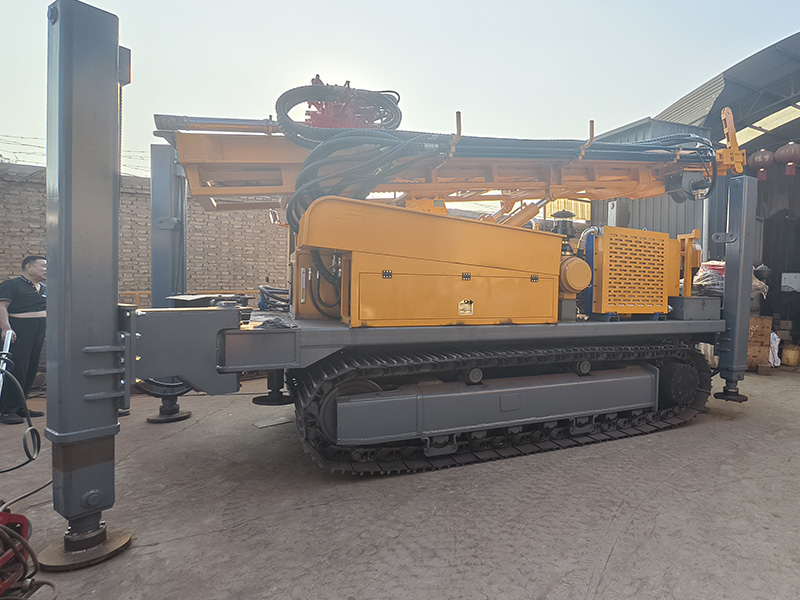

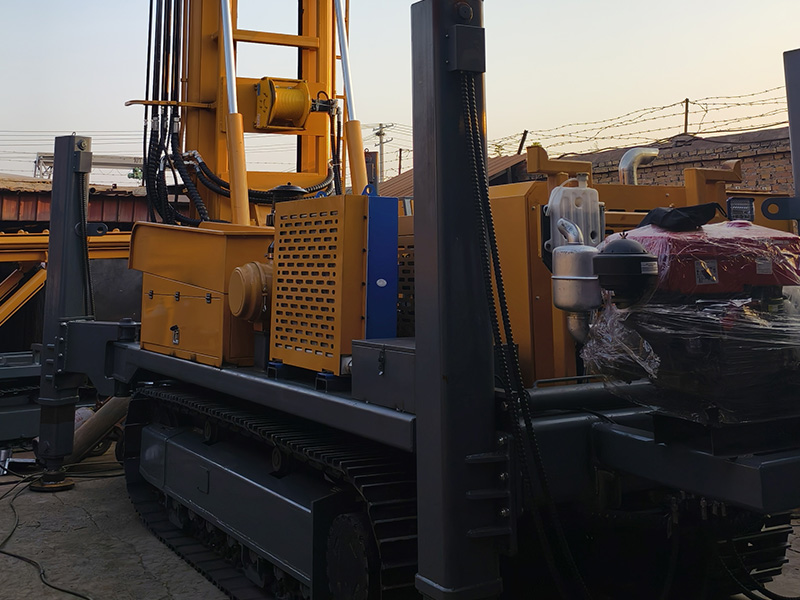

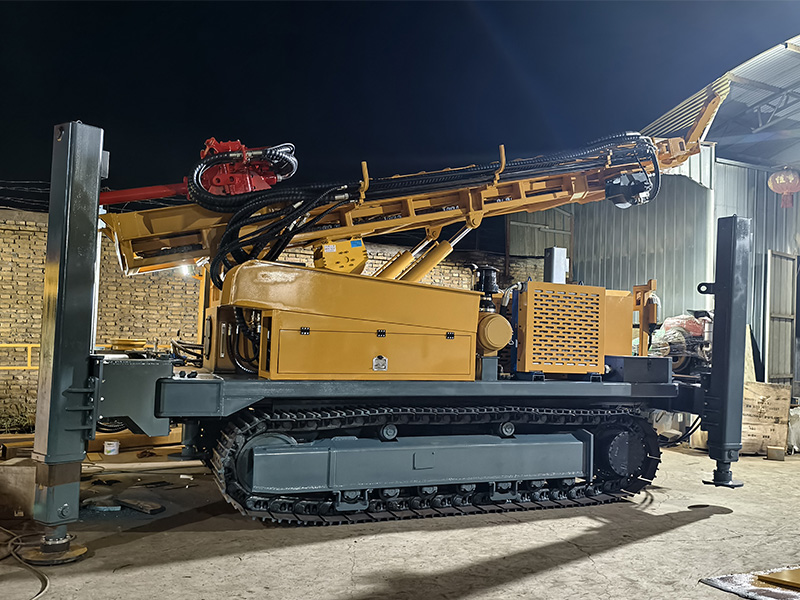

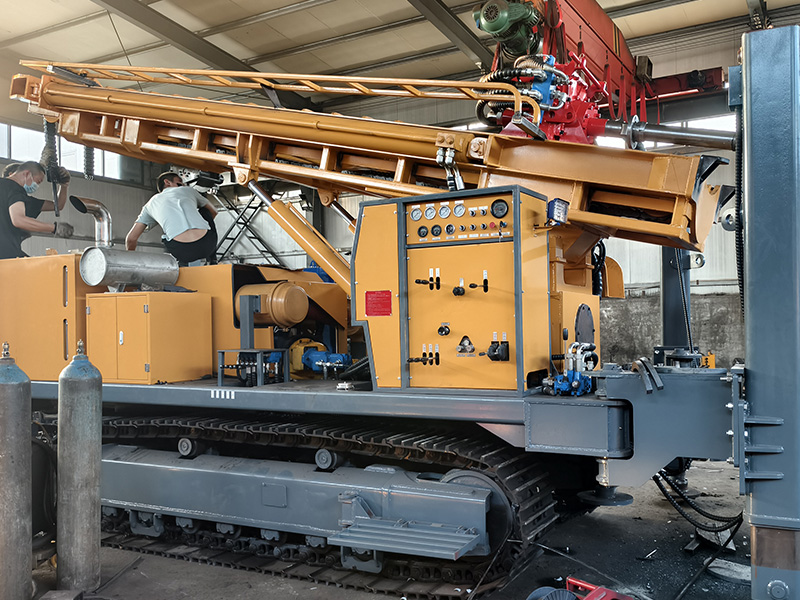

ZD1200 Deep Water Well Drilling Rig

ZD1200 Deep Water Well Drilling Rig is high-power full-hydraulic pneumatic drilling equipment, widely used for deep drinking water wells, geothermal wells and large mine water supply well construction. Equipped with high-pressure pneumatic system and strong load capacity, it runs steadily during deep hard rock drilling.

ZD Group can customize crawler water well drilling rigs ranging from 200m to 2000m for global deep well development projects.

CONTACT USRequest a quote
Product Details

Technical Specifications

Max. Drilling Depth: 1200m

Hole Diameter: 105-900mm

Working air pressure : 1.65-8Mpa

Air consumption: 16-120m³/min

Drill Pipe length: 6m

Drill Pipe diameter: 127mm

Axial force: 13T

Rig lifting force: 60T

Fast lifting Speed: 29m/min

Fast feeding speed: 50m/min

Engine Power: 250kw

Max. Rotary torque: 24000-12000Nm

Rotary Speed: 75-160r/min

Winch hoist lifting force: 4T(Big Main Winch)，1.5吨(Small Winch)

High hydraulic leg travel: 1.7m

Drilling efficiency: 10-38m/h

Walking Speed : 3.5Km/h

Climbing Angles: 35°

Weight : 20t

Overall dimensions: 6.6m×2.25m×3m(combination tower)

Optional: mud pump, electric welding generator, tube expander, air compressor

Adaptation conditions: Loose layer and bedrock, hard rock

Drilling mode: Top drive hydraulic slewing and propulsion, underhole impactor or mud drilling


Prev:ZD1600 Deep Water Well Drilling Rig
Next:ZD-2000

FAQ About Water Well Drilling Rig

  1. What types of drilling rigs do you offer?

    We supply water well drilling rigs, crawler drilling rigs, truck mounted drilling rigs, trailer drilling rigs and core drilling rigs for different drilling applications.

  2. How do I choose the right drilling rig?

    The selection depends on drilling depth, geological conditions, hole diameter and project requirements.

  3. Do you provide customized drilling equipment?

    Yes. ZDrill provides customized drilling solutions according to drilling depth, drilling method and site conditions.

  4. What industries use your drilling equipment?

    Our drilling equipment is widely used in water well construction, geological exploration, mining, geothermal projects and infrastructure development.
