A DTH water well drilling rig is not a standalone machine in the practical sense. The drilling result depends on how the rig, down-the-hole hammer, drill bit, air compressor, drill pipes and other components work together.
For contractors working in hard rock, fractured formations or mixed geological conditions, choosing a rig only by drilling depth can lead to an unsuitable configuration. The drilling diameter, rock characteristics, hammer size, air requirement, compressor capacity and mobility of the machine all need to be considered together.
For international buyers searching for a DTH water well drilling rig manufacturer, understanding this equipment relationship can make the purchasing process more practical.
ZDrill Machinery, operated by Shijiazhuang Zhengdrilling Machinery Equipment Co., Ltd., provides water well drilling rigs, DTH drilling equipment, air compressors, mud pumps and drilling tools for different drilling applications.
DTH means Down-The-Hole.
In a DTH drilling system, the hammer operates near the bottom of the borehole rather than remaining at the surface. Compressed air is delivered through the drill string to power the hammer, which transfers impact energy to the drill bit.
The system combines several functions:
Drilling Rig → Drill Pipes → DTH Hammer → Drill Bit
with the Air Compressor supplying the compressed air required by the pneumatic hammer.
This arrangement is widely used for rock drilling because the impact energy is delivered close to the bottom of the hole.
For water well construction, the DTH method can be considered when the project encounters rock formations where pneumatic percussion drilling is appropriate.
When buyers search for a DTH water well drilling machine, they may focus on the rig itself.
However, the complete drilling system includes several critical components.
| Component | Main Function |
|---|---|
| Drilling Rig | Provides rotation, feeding, lifting and machine movement |
| DTH Hammer | Converts compressed air into impact energy |
| Drill Bit | Transfers impact and rotation to the rock |
| Drill Pipe | Connects the surface equipment with the bottom-hole assembly |
| Air Compressor | Supplies compressed air to the hammer |
| Hydraulic System | Controls drilling and machine functions |
| Dust Collection / Air System | Helps manage cuttings depending on configuration |
A mismatch between these components can affect drilling performance.
For this reason, buyers should ask a DTH drilling rig manufacturer to evaluate the complete system rather than purchasing each component based only on individual specifications.
The basic process is relatively straightforward.
The rig positions the drill string above the borehole.
The drill pipes connect the surface equipment with the down-hole hammer.
Compressed air travels through the drill pipes and powers the DTH hammer.
The hammer repeatedly impacts the drill bit.
At the same time, the rotary system turns the drill string and bit.
The combined impact and rotation break the rock at the bottom of the borehole.
The compressed air also assists with removing drilling cuttings from the borehole.
This combination makes DTH drilling particularly relevant to certain rock-drilling applications.
Hard rock formations can present different drilling conditions from loose soil or unconsolidated formations.
Granite, basalt, limestone and other rock formations may require a drilling system capable of delivering repeated impact energy to the bottom of the hole.
A DTH system places the hammer close to the drilling point.
This is different from systems where the impact mechanism is located far above the bottom of the hole.
For contractors working in rock formations, this design can make DTH a suitable drilling method depending on the geological conditions, borehole diameter and project requirements.
However, DTH should not be treated as the correct method for every geological formation.
The DTH hammer is one of the most important components in the system.
Hammer selection is related to the required drilling diameter, rock formation, air supply and drill pipe configuration.
A larger hammer generally requires a different air supply and drill-string configuration than a smaller hammer.
Before selecting a hammer, buyers should provide:
Required drilling diameter
Target drilling depth
Rock formation
Expected drilling speed
Available compressor pressure
Available air volume
Drill pipe diameter
Rig configuration
The manufacturer can then evaluate whether the proposed hammer is compatible with the complete drilling system.
The drill bit is the component directly interacting with the rock.
Different drilling conditions may require different bit designs, diameters and materials.
The selection should consider:
The required hole diameter determines the approximate bit diameter and affects the selection of the hammer and drill pipe.
Different rock types have different hardness and abrasiveness.
A bit suitable for one formation may not provide the same performance in another.
The bit needs to match the DTH hammer system.
Hammer and bit should therefore be considered as a pair rather than independent products.
As drilling depth increases, the overall drill string becomes longer and system requirements can change.
The manufacturer should therefore evaluate the complete drilling configuration.
ZDrill's product range includes DTH drilling tools and PDC bits, with customizable specifications available for different applications.
The air compressor is not simply an auxiliary machine.
It is an essential part of a pneumatic DTH drilling system because compressed air powers the down-hole hammer.
The compressor needs to provide appropriate:
Working Pressure + Air Displacement
for the selected hammer and drilling application.
If the air supply does not match the hammer requirements, drilling performance may be affected.
Therefore, buyers should avoid selecting the compressor separately from the DTH hammer.
A better approach is:
DTH Hammer → Required Air Pressure and Air Volume → Compressor Selection
This is particularly important when purchasing a complete DTH water well drilling system from China.
For some projects, an integrated configuration can simplify equipment matching.

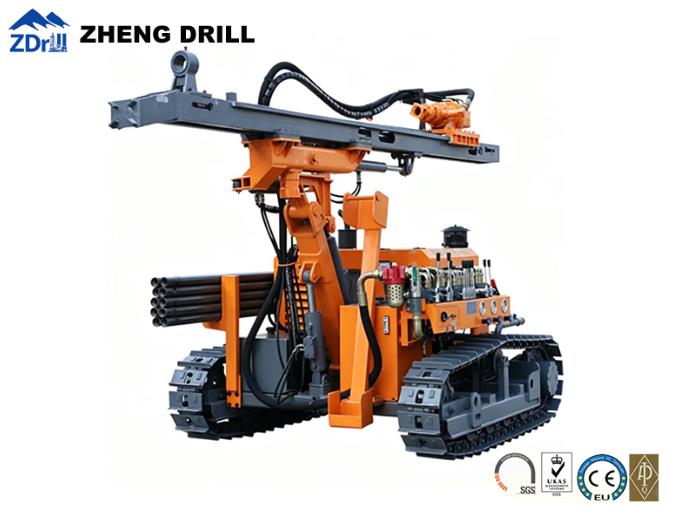

ZDrill currently offers an Integrated DTH Drilling Rig with Air Compressor, combining the drilling unit and compressor into one machine. The listed YQ35, YQ35A and YQ35D configurations use 3.5- or 4-inch impactors, with listed drilling diameters ranging from 80 mm to 140 mm and drilling depths of approximately 21–27 m for these specific models.
This type of configuration can be useful when mobility and compact equipment arrangement are important.
The integrated system can reduce the need to separately transport an external compressor and drilling unit.
However, these compact configurations should not be confused with larger deep-water-well drilling rigs. Equipment selection should always be based on the actual project depth and borehole requirements.
Both configurations have their own applications.
| Configuration | Main Characteristic | Suitable Consideration |
|---|---|---|
| Separate Rig + Compressor | Components can be selected independently | Larger or customized projects |
| Integrated DTH Rig | Rig and compressor combined | Mobile and compact drilling |
| Crawler DTH Rig | High site mobility | Uneven or remote terrain |
| Truck-Mounted Rig | Road transportation | Multiple job sites |
| Trailer-Mounted Rig | Flexible towing | Contractors with suitable towing vehicles |
The correct option depends on the project rather than the configuration name alone.
A DTH drilling system is commonly associated with rock drilling, but actual project conditions can be more complicated.
DTH drilling can be considered for hard-rock water well projects where pneumatic percussion is appropriate.
Fractured formations can require additional attention to borehole stability, air circulation and drilling-fluid management.
Some water wells pass through soil or unconsolidated material before reaching bedrock.
In these cases, a dual-purpose rig may provide more flexibility than a system designed exclusively for one drilling method.
ZDrill's product range includes dual-purpose water well rigs capable of combining rotary/mud drilling with DTH drilling on selected models.
Deep drilling requires more than a rig with a high advertised depth.
As drilling depth increases, buyers need to consider:
Drill string weight
Feed and lifting capability
Drill pipe length
Air pressure losses
Compressor capacity
Borehole diameter
Rock formation
Drill tool wear
Cuttings removal
Machine stability
For example, ZDrill lists the ZD1600 Deep Water Well Drilling Rig with DTH hammer drilling as one of its available drilling methods. The listed machine can also use top-drive hydraulic rotary drilling and mud drilling, with optional equipment including an air compressor and mud pump.
This type of multi-method configuration can be relevant when a project passes through different formations during the same borehole.
For international buyers, the equipment configuration is only one part of supplier evaluation.
A suitable DTH water well drilling rig manufacturer in China should also be able to discuss:
Geological conditions
Drilling method
Hammer selection
Bit selection
Compressor matching
Drill pipe configuration
Machine mobility
Spare parts
Factory testing
Export packing
Technical documentation
ZDrill Machinery is based in Shijiazhuang, Hebei, China, and its product portfolio includes water well drilling rigs, DTH drilling rigs, air compressors, mud pumps and drilling tools. The company states that its business includes R&D, manufacturing, international export and technical services.
Before requesting a quotation, provide detailed project information.
Country and general drilling area.
Expected water well depth and maximum planned depth.
Required hole diameter or diameter range.
Known formation information such as soil, limestone, granite, basalt, fractured rock or mixed strata.
Whether DTH drilling is required throughout the hole or only after passing through softer layers.
Crawler, truck-mounted, trailer-mounted or integrated configuration.
If the buyer already owns a compressor, provide its pressure and air displacement specifications.
Specify whether the project requires DTH hammers, drill bits, drill pipes and other tools together with the machine.
Providing these details gives the manufacturer a better basis for equipment matching.
Consider a contractor planning a water well in a hard-rock area.
The project requires:
A specific borehole diameter
Several hundred meters of drilling
DTH drilling in rock
Frequent movement between sites
An independent air compressor
The equipment selection should not simply be:
“Buy a 500 m drilling rig.”
A more complete evaluation would be:
Required Hole Diameter → DTH Hammer → Drill Bit → Air Requirement → Compressor → Drill Pipe → Rig Feed and Rotation → Mobility
This sequence helps identify whether all major components can work together.
It also gives the manufacturer more useful information when preparing a quotation.
Before placing an order, international buyers can review the following points:
| Checkpoint | Question to Ask |
|---|---|
| Rig capability | Is the rig suitable for the required depth and hole diameter? |
| DTH hammer | Which hammer is recommended? |
| Drill bit | Which bit diameter and type should be used? |
| Compressor | What pressure and air volume are required? |
| Drill pipes | Are the pipes matched to the hammer and rig? |
| Geology | Has the manufacturer evaluated the actual formation? |
| Mobility | Is crawler, truck or trailer configuration more suitable? |
| Testing | Is the complete machine tested before shipment? |
| Spare parts | Which wearing parts should be purchased? |
| Technical support | What documentation and technical assistance are available? |
This checklist can help buyers evaluate the complete drilling solution rather than comparing only machine prices.
ZDrill Machinery, operated by Shijiazhuang Zhengdrilling Machinery Equipment Co., Ltd., provides equipment for water well drilling, DTH drilling and related applications.
Its current product portfolio includes water well drilling rigs, DTH drilling rigs, integrated DTH drilling rigs, air compressors, DTH hammers, drill bits and other drilling tools.
The company also offers different chassis and drilling configurations, allowing equipment to be considered according to drilling depth, geological conditions, drilling method and working environment.
For international projects, this broader product range allows buyers to discuss the rig + hammer + bit + compressor + drill tools as a connected system.
DTH means Down-The-Hole. The drilling hammer operates near the bottom of the borehole and delivers impact energy directly to the drill bit.
DTH drilling is commonly used for rock drilling, including many hard-rock water well applications. Actual suitability depends on the geological formation, hole diameter, drilling depth and equipment configuration.
A conventional pneumatic DTH system requires compressed air to operate the hammer. Some integrated machines combine the drilling rig and air compressor into one unit.
Hammer selection depends on borehole diameter, rock formation, required drilling performance and available compressed-air supply.
The bit should match the hammer and required borehole diameter while also being suitable for the expected rock formation.
Yes, DTH drilling can be part of deep water well systems, but the complete equipment configuration must account for drilling depth, drill-string weight, air supply, borehole diameter and geological conditions.
Some rigs are designed for multiple drilling methods. ZDrill lists water well rigs that can combine DTH hammer drilling with rotary or mud drilling depending on the model and configuration.
A DTH water well drilling rig should be evaluated as a complete drilling system rather than a single machine.
The rig, DTH hammer, drill bit, drill pipes and air compressor need to be matched according to the borehole diameter, drilling depth, geological formation and required drilling method.
For international buyers, this approach can also make supplier comparison more meaningful. Instead of asking only for the price and maximum drilling depth, buyers can ask the manufacturer to provide a complete configuration based on the actual project.
ZDrill Machinery supplies DTH water well drilling rigs, DTH hammers, drill bits, air compressors and related drilling equipment for different water well and rock drilling applications.
