A 500m water well drilling rig for Nigeria can be considered for borehole projects where shallow drilling equipment cannot reach the planned groundwater target.
For drilling contractors, agricultural water projects, industrial groundwater development, and borehole service companies, a 500-meter drilling requirement is not simply a matter of choosing a machine with a “500m” label. Geological formation, borehole diameter, drilling method, tooling, power system, and site conditions all affect the actual equipment configuration.
ZDrill Machinery provides water well drilling equipment for different depth ranges and applications, including the ZD500 Water Well Drilling Rig, a crawler-mounted full-hydraulic drilling unit with a stated standard maximum drilling depth of 500 meters.
For Nigerian buyers, the machine should therefore be evaluated according to the specific borehole project rather than maximum drilling depth alone.
Water well projects can have very different depth requirements.
Some boreholes may be relatively shallow, while others require considerably deeper drilling because of local geological conditions and the location of the target groundwater formation.
A 500 meter water well drilling rig provides a middle-depth equipment option for projects that need more capacity than smaller water well machines but do not necessarily require an ultra-deep drilling rig.
Potential applications include:
Agricultural irrigation wells
Rural water supply
Community boreholes
Industrial groundwater projects
Commercial borehole drilling
Municipal water projects
Selected geothermal applications
The actual drilling depth should be determined from available geological and groundwater information rather than selected only according to the equipment specification.
For a Nigerian borehole project, the required drilling depth should be considered together with the formation.
A 500m project can involve:
Soil layers
Sand
Gravel
Weathered rock
Hard rock
Mixed geological formations
Different formations can require different drilling approaches.
For example, a project dominated by loose formations may require mud circulation, while a hard-rock section may require a DTH system and air compressor.
ZDrill's project inquiry process asks buyers to provide information about formation structure, including soil, rock, and mixed conditions, as well as the preferred drilling technology.
This makes geological information an important part of selecting a 500m borehole drilling rig in Nigeria.

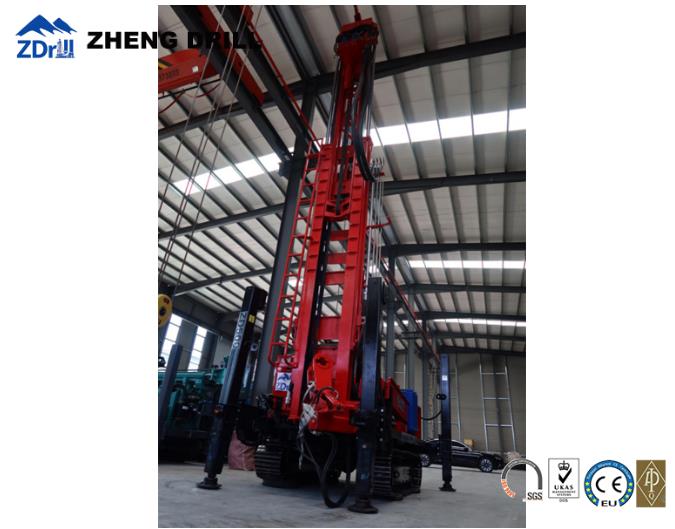

The ZD500 Water Well Drilling Rig is a crawler-mounted full-hydraulic drilling machine designed for water well and related drilling applications.
According to ZDrill's current product information, the ZD500 has:
| Item | ZD500 |
|---|---|
| Equipment type | Water well drilling rig |
| Chassis | Crawler |
| Drive system | Full hydraulic |
| Standard maximum drilling depth | 500 m |
| Application | Water wells |
| Agricultural use | Irrigation wells |
| Other applications | Shallow geothermal and municipal water exploration |
The manufacturer also states that its drilling equipment can be customized according to different construction requirements.
For a buyer specifically searching for a 500m water well drilling machine, this provides a concrete model around which the project discussion can be developed.
Two customers can both request a 500m drilling rig while having very different requirements.
Consider these two examples.
Target depth: 450–500m
Application: Farm irrigation
Formation: Mixed soil and rock
Borehole diameter: Medium
Site: Rural agricultural area
This project may require a drilling configuration that can handle both softer formations and rock sections.
Target depth: 500m
Application: Industrial water supply
Formation: Predominantly rock
Borehole diameter: Larger
Site: Industrial facility
The second project may require different drilling tools, borehole design, and supporting equipment.
Although both projects require approximately 500 meters of drilling, the equipment package should not automatically be identical.
A rated maximum depth should not be interpreted as a guaranteed drilling depth under every condition.
Actual drilling performance can be affected by:
Geological formation
Borehole diameter
Drill pipe specification
Rock hardness
Drilling method
Rotary torque
Feed force
Hoisting capacity
Drilling tools
Operator experience
Supporting equipment
A machine may have a stated maximum depth of 500m under specified conditions, while a particular project may have a practical drilling depth that differs.
This is why drilling contractors should provide project information before ordering the machine.
The drilling method is one of the most important configuration decisions.
Mud drilling can be considered for suitable soil, sand, gravel, and other unconsolidated formations.
Drilling fluid can help:
Carry cuttings from the borehole
Cool drilling tools
Support borehole walls
Maintain circulation during drilling
A mud pump becomes an important part of the system when mud circulation is used.
DTH drilling can be considered when the borehole encounters suitable hard-rock formations.
A typical DTH system may include:
Water Well Drilling Rig + Drill Pipe + DTH Hammer + Drill Bit + Air Compressor
The hammer operates at the bottom of the borehole and transfers impact energy to the drill bit.
Some Nigerian borehole projects may pass through different formations.
In this situation, a combined drilling approach can be considered when the equipment configuration allows different drilling processes to be used according to the formation.
ZDrill's product and inquiry system supports mud pump drilling, air compressor drilling, and combined processes depending on the project requirements.
One common mistake when purchasing a drilling rig is focusing only on depth.
A 500m water well drilling rig must also be matched to the required borehole diameter.
A larger borehole can increase the drilling load and affect:
Drill bit selection
Drill pipe size
Rotary torque requirements
Mud circulation
Air requirements
Casing installation
Drilling time
For this reason, a buyer should provide both:
Target depth + Required borehole diameter
rather than simply saying:
500m water well.
The manufacturer can then determine whether the selected drilling rig and tooling are appropriate.
Agricultural irrigation is one potential application for medium-to-deep water well drilling equipment.
A farm may require a borehole when surface water is unavailable, seasonal, or insufficient for irrigation requirements.
A deeper borehole project can involve:
Crop irrigation
Plantation farming
Greenhouse agriculture
Livestock water supply
Commercial agricultural projects
For agricultural contractors, the drilling machine may also need to move between multiple borehole locations.
The equipment selection therefore needs to consider not only depth but also:
Farm access
Working area
Ground conditions
Transportation
Borehole diameter
Drilling method
Availability of water or power during drilling
ZDrill currently provides crawler and truck-mounted drilling configurations for agricultural and other water well applications.
Industrial groundwater projects can have more detailed requirements than a simple agricultural borehole.
The project may require:
Larger borehole diameter
Deeper casing
Specific water yield
Detailed geological investigation
Continuous drilling operation
More extensive supporting equipment
In this situation, the drilling rig should be selected as part of the complete well construction plan.
The drilling contractor should provide the manufacturer with available geological information and well design requirements before choosing the final configuration.
A drilling rig is only one component of a complete borehole system.
Depending on the drilling method, the equipment package may include:
The main drilling platform provides the rotary, feed, lifting, and other functions required for borehole construction.
Drill pipes transmit rotation and drilling force while connecting the surface equipment with the bottom-hole assembly.
For DTH drilling, the hammer delivers impact energy to the drill bit.
The bit breaks the formation at the bottom of the borehole.
A compressor supplies the compressed air required for pneumatic drilling and DTH operation.
A mud pump circulates drilling fluid when mud drilling is selected.
ZDrill's current product portfolio includes water well drilling rigs, DTH drilling rigs, air compressors, mud pumps, drill pipes, DTH hammers, and drill bits, allowing buyers to discuss the complete drilling equipment package.
A buyer may also compare a 500m drilling rig with a higher-capacity model.
ZDrill currently lists both the ZD500 and ZD600 in its water well drilling equipment range.
The decision should be based on expected project requirements rather than simply selecting the machine with the larger number.
| Project Requirement | Possible Direction |
|---|---|
| Regular projects below 500m | 500m-class equipment |
| Projects around 450–500m | 500m-class equipment |
| Projects occasionally exceeding 500m | Consider additional capacity |
| Regular 600m projects | 600m-class equipment |
| Highly variable drilling depths | Consider a broader equipment fleet |
For a contractor, the most useful machine is often the one that matches the majority of its actual projects.
The following is a project-planning example rather than a claim of a specific Nigerian customer project.
Imagine a drilling contractor receives a project for an agricultural groundwater well in Nigeria.
The preliminary requirements are:
| Project Item | Requirement |
|---|---|
| Application | Agricultural irrigation |
| Country | Nigeria |
| Target depth | Approximately 500m |
| Formation | Soil with deeper rock sections |
| Borehole | Medium-diameter water well |
| Site | Rural agricultural area |
| Drilling requirement | Mud and/or DTH according to formation |
The contractor provides available geological information to the manufacturer.
This helps determine whether mud drilling, DTH drilling, or a combined process should be considered.
Because the target depth is approximately 500m, a 500m-class drilling rig becomes a logical equipment category to evaluate.
The ZD500 can then be considered as the specific model option.
If hard rock is expected, the contractor may need:
Air compressor
DTH hammer
DTH bits
Drill pipes
If softer formations require mud circulation, the project may require:
Mud pump
Drilling fluid system
Suitable drilling tools
The contractor checks:
Access road
Ground conditions
Working area
Rig transportation
Borehole positioning
Instead of ordering only the drilling rig, the contractor confirms the complete equipment package and spare parts required for the project.
This type of project-based selection helps reduce the risk of choosing a machine based only on its maximum drilling depth.
ZDrill has published an Africa water well drilling case study involving groundwater development and borehole construction.
The published project focused on selecting drilling equipment according to project requirements and working conditions rather than simply choosing a standard machine. The equipment configuration considered factors such as drilling depth, geological conditions, working environment, and supporting accessories.
The case is an Africa regional reference rather than a Nigeria-specific customer case.
For Nigerian buyers, its value is in demonstrating the equipment-selection process:
Project requirements → Geological conditions → Equipment configuration → Supporting tools → Delivery → Drilling operation
This is also why a Nigerian customer requesting a 500m rig should provide project information before receiving a final equipment recommendation.
A practical selection process can follow these steps.
Is the planned well:
300m?
400m?
500m?
More than 500m?
If the project consistently requires approximately 500m, a 500m-class machine may be worth evaluating.
Provide information about:
Soil
Sand
Gravel
Weathered rock
Hard rock
Mixed formations
The drilling diameter directly affects the drilling tools and machine requirements.
Determine whether the project requires:
Mud circulation
DTH
Rotary drilling
Combined drilling
Consider:
Road access
Terrain
Working area
Ground stability
Distance between drilling points
Confirm the required:
Air compressor
Mud pump
Drill pipes
Drill bits
DTH hammer
Spare parts
International buyers should also confirm:
Machine dimensions
Shipping weight
Container or bulk shipment requirements
Loading arrangements
Spare-parts shipment
Destination port
ZDrill Machinery is operated by Shijiazhuang Zhengdrilling Machinery Equipment Co., Ltd., based in Shijiazhuang, Hebei, China.
The company was established in 1997 and focuses on drilling equipment R&D, manufacturing, international export, and technical services. Its product portfolio includes water well drilling rigs, DTH drilling rigs, mineral exploration equipment, air compressors, mud pumps, and drilling tools.
For buyers searching for a 500m water well drilling rig manufacturer in China, the ZD500 provides a specific 500-meter-class crawler drilling option.
ZDrill also provides different depth classes, allowing buyers to compare equipment according to their expected drilling projects instead of selecting one machine for every application.
A detailed inquiry can include the following:
| Information | Example |
|---|---|
| Country | Nigeria |
| Application | Agricultural / rural / industrial |
| Target depth | 500m |
| Borehole diameter | Required diameter |
| Formation | Soil / rock / mixed |
| Drilling method | Mud / DTH / combined |
| Machine type | Crawler / truck-mounted |
| Compressor | Required / existing |
| Mud pump | Required / existing |
| Drill tools | Required |
| Quantity | 1 set / multiple sets |
| Destination | Nigerian port |
| Spare parts | Required / not required |
This allows the manufacturer to provide a more relevant configuration instead of quoting a generic water well drilling rig.
The same drilling depth can produce completely different equipment requirements.
For example:
500m + soft formation
is not necessarily the same as:
500m + hard rock
Likewise:
500m + agricultural irrigation
can have different borehole requirements from:
500m + industrial groundwater
Therefore, a reliable water well drilling rig manufacturer should evaluate the complete project before confirming the equipment configuration.
For international buyers, this approach can also make quotation comparisons more meaningful because different suppliers may be offering different machine configurations under the same “500m drilling rig” description.
A 500m water well drilling rig is a drilling machine designed with a stated maximum drilling capacity of approximately 500 meters under specified conditions. ZDrill's ZD500 is a crawler-mounted full-hydraulic water well drilling rig with a standard maximum drilling depth of 500m.
It can be suitable for Nigerian borehole projects where the planned drilling depth is around 500 meters. The actual configuration should also match geological formation, borehole diameter, drilling method, and site conditions.
A 500m depth rating does not itself determine the drilling method. For suitable hard-rock formations, a DTH configuration with an appropriate hammer, bit, compressor, and drill pipes may be considered.
ZDrill lists the ZD500 for water wells, agricultural irrigation wells, shallow geothermal applications, and municipal foundation water exploration.
Depending on the formation and drilling method, supporting equipment may include drill pipes, DTH hammers, drill bits, air compressors, mud pumps, and related drilling accessories.
The choice should be based on the contractor's expected project range. If most projects are around 500m, a 500m-class machine can be evaluated. If projects regularly exceed 500m, a higher-capacity machine may be more appropriate.
ZDrill states that it provides customized drilling solutions according to drilling depth, drilling method, and site conditions. Buyers should provide detailed project information before the final configuration is confirmed.
ZDrill has published an Africa water well drilling project case involving groundwater development and borehole construction. The published case should be treated as an Africa regional reference rather than a specific Nigerian customer case.
A 500m Water Well Drilling Rig for Nigeria can provide a practical equipment category for borehole projects that require medium-to-deep groundwater drilling.
However, the 500-meter specification should only be the starting point.
The final machine configuration should also consider geological formation, borehole diameter, drilling method, site conditions, supporting equipment, and project application.
For agricultural irrigation, rural water supply, industrial groundwater development, and other borehole projects, buyers can evaluate the ZD500 as a specific 500-meter-class crawler drilling option. ZDrill also provides other water well drilling rigs, DTH equipment, air compressors, mud pumps, drill pipes, and drilling tools for different project requirements.
For Nigerian contractors and international drilling equipment buyers, providing the target depth, borehole diameter, formation, drilling method, application, and site conditions is the most practical way to obtain a suitable 500m drilling rig configuration.
500m Water Well Drilling Rig, 500m Water Well Drilling Rig Nigeria, 500m Water Well Drilling Machine Nigeria, 500 Meter Water Well Drilling Rig, 500m Borehole Drilling Machine, Borehole Drilling Rig Nigeria, Deep Water Well Drilling Rig Nigeria, Water Well Drilling Machine for Nigeria, ZD500 Water Well Drilling Rig, 500m Drilling Rig Manufacturer, Water Well Drilling Rig Manufacturer China, Nigeria Water Well Drilling Equipment
Processing Demand Survey
x
