When a drilling project requires significantly greater depth than a conventional medium-depth water well, equipment selection needs to consider more than basic drilling capacity.
The ZD-2000 Crawler Water Well Drilling Rig is designed for deep drilling projects with a maximum listed drilling depth of 2000 meters. It uses a full-hydraulic drive system and crawler chassis, with a maximum drilling diameter of 500 mm, maximum lifting force of 100 tons and maximum rotary torque of 38,000 Nm. The manufacturer lists Reverse Circulation as its drilling method.
The machine can be considered for deep water wells, agricultural irrigation, geothermal projects and other drilling applications where a high-capacity crawler drilling platform is required.
For international drilling contractors, the actual configuration should still be determined according to drilling depth, formation, borehole diameter, drilling technology and site conditions.

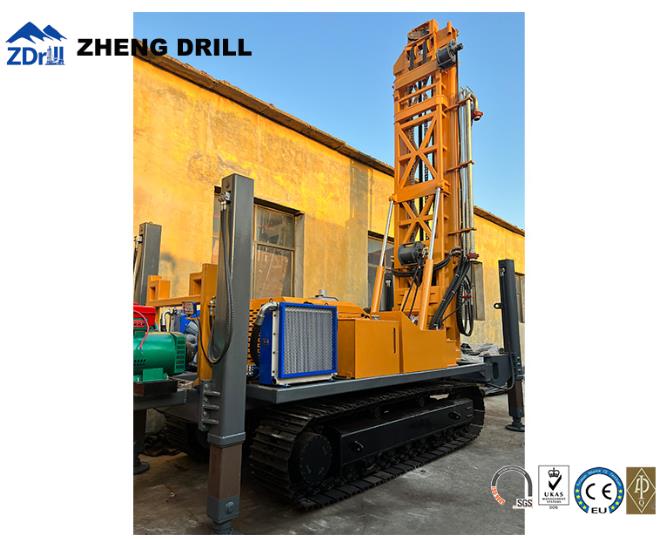

The ZD-2000 is a crawler-mounted, full-hydraulic water well drilling rig developed for deeper drilling applications.
Its crawler chassis provides a self-propelled platform for moving around drilling sites, while the hydraulic system controls the major drilling movements.
According to ZDrill's published product specifications, the main parameters include:
| Parameter | ZD-2000 Specification |
|---|---|
| Maximum drilling depth | 2000 m |
| Maximum drilling diameter | 500 mm |
| Drill rod length | 3 × 6 m |
| Drill rod diameter | 102 / 114 / 127 mm |
| Maximum lifting force | 100 T |
| Mast stroke | 6.6 m |
| Maximum rotary torque | 38,000 Nm |
| Rotary speed | 120–440 rpm |
| Travel speed | 2.5 km/h |
| Engine | Cummins 410 kW |
| Maximum climbing angle | 21° |
| Machine weight | 21 T |
| Dimensions | 6800 × 2500 × 3000 mm |
| Drilling method | Reverse Circulation |
These are published specifications for the listed ZD-2000 configuration. Actual drilling performance depends on formation, drilling tools, borehole diameter and operating conditions.
A drilling depth of 2000 meters changes the requirements placed on the drilling system.
As the drill string becomes longer, the equipment needs to handle greater drill-string weight while maintaining sufficient rotary power, lifting capacity and drilling stability.
A deep drilling project may need to consider:
Drill-string weight
Borehole diameter
Rotary torque
Lifting force
Hydraulic system capacity
Drilling-fluid or air circulation
Drill-pipe dimensions
Formation changes
Casing requirements
Drilling-tool selection
This is why a 2000m Water Well Drilling Rig should be evaluated as a complete drilling system rather than by maximum depth alone.
A machine rated for 2000 meters does not mean that every borehole can automatically reach 2000 meters. The actual working depth depends on the project configuration and geological conditions.
The ZD-2000 uses a full-hydraulic drive structure.
Hydraulic systems are used to control key drilling movements, including rotary operation, feeding and lifting.
For a large drilling rig, hydraulic control can help coordinate several functions during operation.
The main benefits of a hydraulic drilling system include:
Direct control of drilling movements
Adjustable drilling parameters
Integration of multiple hydraulic functions
Adaptability to different drilling operations
Reduced dependence on separate mechanical transmission systems
The specific operating parameters should be adjusted according to formation and drilling conditions.
A deep drilling rig can be technically capable of reaching a target depth but still face difficulties if it cannot reach the drilling location efficiently.
The Crawler Water Well Drilling Rig configuration provides an integrated tracked chassis.
This can be useful for projects involving:
Uneven ground
Agricultural areas
Remote drilling sites
Gravel surfaces
Unpaved access roads
Sloping terrain
Multiple drilling points
ZDrill's recent crawler-rig information also emphasizes the relationship between site mobility, ground conditions, drilling method and supporting equipment when selecting a crawler water well drilling rig.
The crawler system is therefore not simply a transportation feature. It forms part of the overall drilling-site solution.
One of the primary applications of the ZD-2000 is deep water well construction.
A groundwater project may require deeper drilling because the target aquifer is located below several geological layers.
Depending on the project, drilling may pass through:
Soil → sand → gravel → weathered rock → fractured rock → deeper formation
The drilling method and tools need to adapt as geological conditions change.
The ZD-2000 is listed for rural domestic water well construction, agricultural irrigation well drilling, geothermal shallow well projects and municipal foundation water exploration.
For a specific water well project, however, the required depth should be established from hydrogeological information rather than simply selecting a 2000m-class machine.
Agricultural water supply is another potential application for deep drilling equipment.
Irrigation projects can differ significantly from one location to another.
Some farms may require relatively shallow wells, while others may need deeper groundwater exploration.
Before choosing a Deep Water Well Drilling Rig for Agriculture, the contractor should confirm:
Required water yield
Expected aquifer depth
Soil and rock structure
Borehole diameter
Well casing requirements
Pump installation depth
Site accessibility
A 2000m-capacity drilling rig may be considered when the contractor needs additional depth capability across a range of projects.
However, using the largest available machine for every agricultural well is not necessarily appropriate. Equipment should match the actual project.
Geothermal projects can place additional demands on drilling equipment because drilling conditions can involve deeper formations and different temperature and geological environments.
ZDrill lists geothermal projects among the applications of its deep water well drilling equipment. Its product portfolio also includes the ZD1600 Deep Water Well Drilling Rig, which is listed for geothermal wells and large industrial water supply projects.
For a geothermal project, buyers should provide more detailed information than simply requesting a “2000m drilling rig.”
The manufacturer may need to understand:
Planned well depth
Geological profile
Target formation
Borehole diameter
Drilling method
Temperature conditions
Casing requirements
Required drilling tools
This information helps determine whether the ZD-2000 or another drilling configuration is more appropriate.
The ZD-2000 product page identifies Reverse Circulation as its drilling method.
Reverse circulation drilling uses a different cuttings-return principle from conventional rotary mud drilling.
In an RC system, the drilling string and circulation arrangement are designed to return drilled material through the inner flow path.
The method can be considered when the project requires efficient cuttings removal and is compatible with the selected formation and drilling tools.
For a complete RC drilling system, the following components may need to be matched:
Drilling rig
Dual-wall drill pipes
RC hammer
RC drill bits
Air compressor
Cuttings collection equipment
The drilling method should therefore be confirmed together with the geological conditions before ordering the machine.
ZDrill's product range includes both the ZD-2000 and ZD1600 for deeper drilling projects.
The two models have different listed capacities.
| Feature | ZD-2000 | ZD1600 |
|---|---|---|
| Maximum drilling depth | 2000 m | 1600 m |
| Maximum drilling diameter | 500 mm | 127–700 mm |
| Maximum lifting force | 100 T | 60 T |
| Maximum rotary torque | 38,000 Nm | 12,000–24,000 Nm |
| Chassis | Crawler | Crawler |
| Main application direction | Deep water wells, irrigation, geothermal and exploration | Deep water wells, geothermal and industrial water |
| Drilling approach | Reverse circulation | Pneumatic drilling |
The ZD1600's published specifications include 16–120 m³/min air consumption, 20T thrust force and a 264 kW Cummins engine.
The comparison shows why buyers should not select equipment based only on the number in the model name.
The appropriate machine depends on the combination of depth, diameter, lifting requirements, formation and drilling method.
Another useful comparison is between a 2000m-class machine and a medium-depth drilling rig.
A 500m rig may be sufficient for many conventional groundwater projects.
A 2000m-class machine provides a substantially larger working range for contractors handling deep drilling projects.
| Project requirement | 500m-class rig | ZD-2000 |
|---|---|---|
| Shallow water wells | Suitable depending on model | Suitable but may be oversized |
| Medium-depth groundwater | Suitable depending on project | Suitable |
| Deep water wells | Project dependent | Designed for greater depth capacity |
| 1000m drilling | Model dependent | Within listed capacity |
| 1600m drilling | Generally outside standard range | Within listed capacity |
| 2000m drilling | Generally outside standard range | Listed maximum depth |
| Large lifting requirement | Model dependent | 100T listed maximum lifting force |
This comparison should be used for preliminary equipment planning rather than as a universal rule for every drilling project.
A deep drilling rig requires compatible drilling tools.
The drill pipe is especially important because the drill string becomes longer as the borehole gets deeper.
The ZD-2000 lists drill rod diameters of 102 mm, 114 mm and 127 mm, with a listed rod length configuration of 3 × 6 meters.
Other drilling tools may include:
Bit selection depends on the formation and drilling method.
Different rock formations may require different bit designs.
Drill pipes need to match the rig's connection system and drilling configuration.
For pneumatic drilling applications, the hammer and bit must be matched to the compressor and formation.
Where mud circulation is required, the mud pump should be selected according to the drilling method and borehole conditions.
ZDrill's wider product portfolio includes air compressors, mud pumps, drill pipes, DTH tools and other drilling tools, allowing buyers to evaluate supporting equipment together with the main rig.
Selecting a 2000m Water Well Drilling Rig should start with the project rather than the machine.
Determine the planned drilling depth.
For example:
500m
800m
1000m
1200m
1600m
2000m
The maximum machine capacity should provide a suitable margin above the planned drilling requirement when appropriate.
A deep borehole with a large diameter can place different demands on the drilling system than a smaller-diameter borehole.
The ZD-2000 lists a maximum drilling diameter of 500mm.
Provide information about:
Soil
Sand
Gravel
Clay
Weathered rock
Hard rock
Fractured rock
Mixed formations
Potential methods include:
Reverse circulation
DTH drilling
Mud drilling
Rotary drilling
Combined drilling
ZDrill's project inquiry system specifically asks customers to identify the formation and drilling technology, including mud pump drilling, air compressor drilling, combined processes, core drilling and reverse circulation.
Determine whether the drilling area has:
Paved roads
Unpaved roads
Slopes
Agricultural fields
Remote access
Multiple drilling locations
This information helps determine whether a crawler, truck-mounted or trailer-mounted configuration is appropriate.
The drilling rig should be considered together with the required:
Drill pipes
Drill bits
Air compressor
Mud pump
DTH hammer
RC tools
Casing equipment
Spare parts
Consider a contractor preparing a deep groundwater development project.
The preliminary drilling requirements could be:
| Project Item | Example Requirement |
|---|---|
| Application | Deep groundwater |
| Planned depth | Up to 1800–2000 m |
| Borehole diameter | Up to 500 mm |
| Formation | Mixed soil and rock |
| Drilling method | Reverse circulation |
| Rig configuration | Crawler |
| Required lifting capacity | High |
| Working environment | Remote drilling area |
| Supporting equipment | Drill pipes, bits, compressor and auxiliary tools |
| Project scale | Multiple deep wells |
For this type of project, a ZD-2000 Crawler Water Well Drilling Rig can be evaluated because its published configuration provides up to 2000m drilling depth, 500mm maximum drilling diameter and 100T maximum lifting force.
This is a project planning example, not a documented customer case.
The final equipment selection should be made after reviewing the actual geological report, well design and drilling method.
ZDrill's recent crawler drilling guidance highlights that remote projects can involve unpaved roads, uneven terrain, agricultural fields, gravel surfaces and multiple drilling points.
This type of working environment demonstrates why deep drilling equipment cannot be selected from drilling depth alone.
For example, a contractor may have a 1500–2000m drilling requirement but still need to evaluate:
Can the machine reach the site?
Can the crawler operate safely on the working surface?
Can the drill rig be transported to the project area?
Is the selected drilling method suitable for the formation?
Can the supporting compressor, pump and drill tools be supplied?
The answers to these questions help determine the practical suitability of the equipment.
For international drilling contractors, purchasing a deep drilling rig involves more than comparing product prices.
The supplier should be able to provide suitable technical information and supporting equipment for the intended application.
ZDrill Machinery is operated by Shijiazhuang Zhengdrilling Machinery Equipment Co., Ltd. in Shijiazhuang, Hebei, China. The company states that it focuses on independent R&D, manufacturing, global export and technical services for drilling equipment.
Its current product portfolio includes:
Water well drilling rigs
Crawler drilling rigs
Truck-mounted drilling rigs
Trailer-mounted drilling rigs
Reverse circulation drilling rigs
Core drilling rigs
DTH drilling equipment
Air compressors
Mud pumps
Drill tools
The manufacturer also states that drilling equipment can be customized according to drilling depth, drilling method and site conditions.
When contacting a ZD-2000 Water Well Drilling Rig Manufacturer, providing complete project information can make the quotation process more efficient.
The buyer should provide:
Application: water well, irrigation, geothermal, mining or geological exploration.
Target depth: planned drilling depth and maximum expected depth.
Hole diameter: required borehole diameter or diameter range.
Formation: soil, sand, gravel, hard rock or mixed formation.
Drilling method: reverse circulation, DTH, mud drilling or combined process.
Site conditions: road access, slope, terrain and working space.
Transportation: destination country and port.
Supporting equipment: compressor, mud pump, drill pipes, drill bits and other tools.
ZDrill's own inquiry process collects project type, drilling depth, formation structure, drilling technology and country of use before equipment selection.
The ZD-2000 has a listed maximum drilling depth of 2000 meters under its specified configuration.
The published maximum drilling diameter is 500 mm.
The ZD-2000 product page lists Reverse Circulation as its drilling method. The actual drilling configuration should be confirmed according to the project requirements.
The listed maximum lifting force is 100 tons.
The published specification lists a Cummins 410 kW engine.
Yes. ZDrill lists agricultural irrigation well drilling among the applications of the ZD-2000. However, the actual machine size should be matched to the required drilling depth and project conditions.
The manufacturer lists geothermal projects among the applications of its deep water well drilling equipment. Whether the ZD-2000 is suitable for a specific geothermal project depends on depth, formation, borehole design, drilling method and other technical requirements.
The ZD-2000 is listed with a maximum drilling depth of 2000m and maximum lifting force of 100T, while the ZD1600 is listed with a maximum depth of 1600m and maximum lifting force of 60T. Their drilling methods and other specifications also differ.
ZDrill states that it can customize crawler water well drilling rigs according to different construction requirements, with adjustable drilling depths from approximately 150m to 2000m for its crawler range. The final configuration should be confirmed with the manufacturer for the specific project.
The ZD-2000 Crawler Water Well Drilling Rig is designed for deep drilling projects where a higher drilling capacity, strong lifting capability and crawler-mounted working platform are required.
Its published specifications include a 2000m maximum drilling depth, 500mm maximum drilling diameter, 100T maximum lifting force and 38,000 Nm maximum rotary torque. The machine is also listed with Reverse Circulation as its drilling method.
The ZD-2000 can be considered for applications including deep water well construction, agricultural irrigation, geothermal projects and geological or municipal water exploration.
For international drilling contractors, however, choosing a 2000m drilling rig should not be based on depth alone. Formation, borehole diameter, drilling method, lifting requirements, site mobility and supporting equipment all need to be evaluated together.
For a detailed quotation, buyers can provide the manufacturer with the target depth, borehole diameter, geological conditions, drilling method, site environment and destination country. This allows the Water Well Drilling Rig Manufacturer China to develop a more suitable equipment configuration for the project.
ZD-2000 Water Well Drilling Rig, ZD-2000 Crawler Water Well Drilling Rig, ZD-2000 Drilling Rig, 2000m Water Well Drilling Rig, 2000m Water Well Drilling Machine, 2000 Meter Water Well Drilling Rig, Deep Water Well Drilling Rig, Deep Water Well Drilling Machine, Crawler Water Well Drilling Rig, Reverse Circulation Drilling Rig, Reverse Circulation Water Well Drilling Rig, 2000m Drilling Rig Manufacturer, Water Well Drilling Rig Manufacturer China, Deep Well Drilling Equipment, Geothermal Water Well Drilling Rig, Agricultural Water Well Drilling Rig, ZD-2000 Manufacturer
Processing Demand Survey
x
